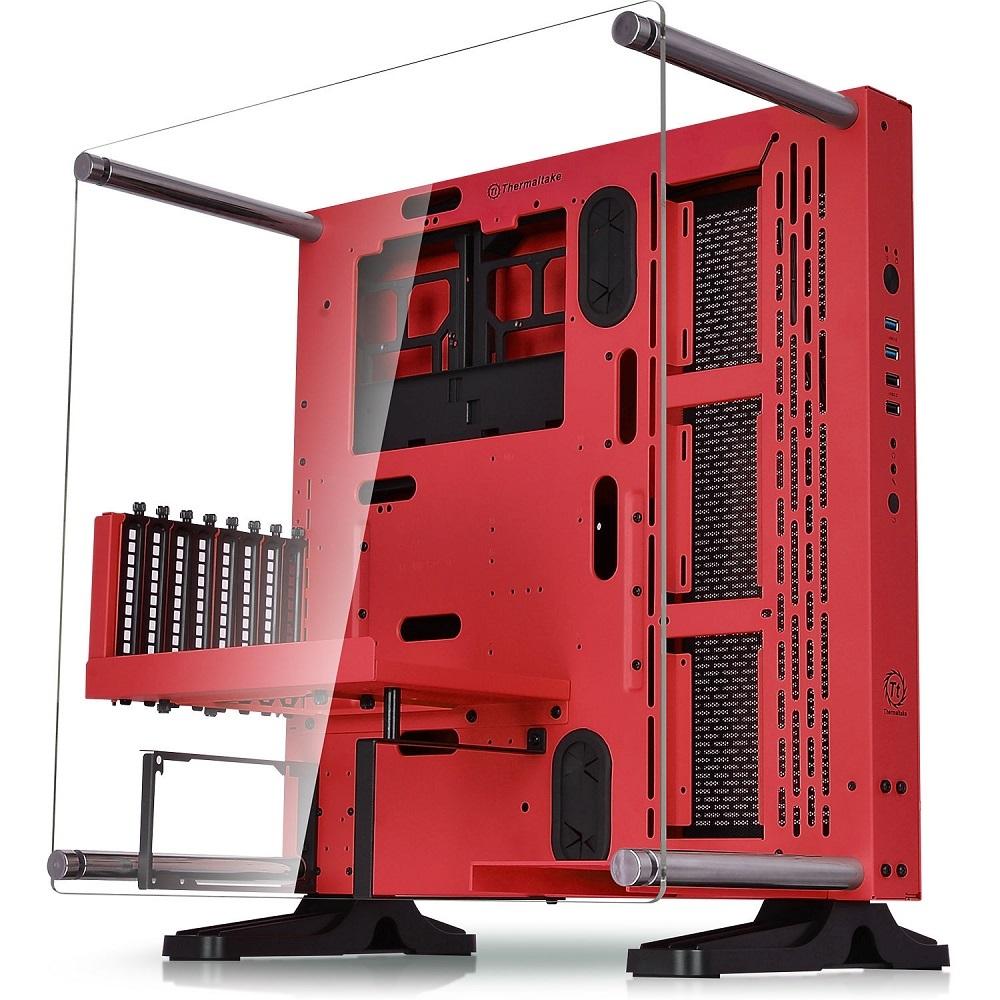

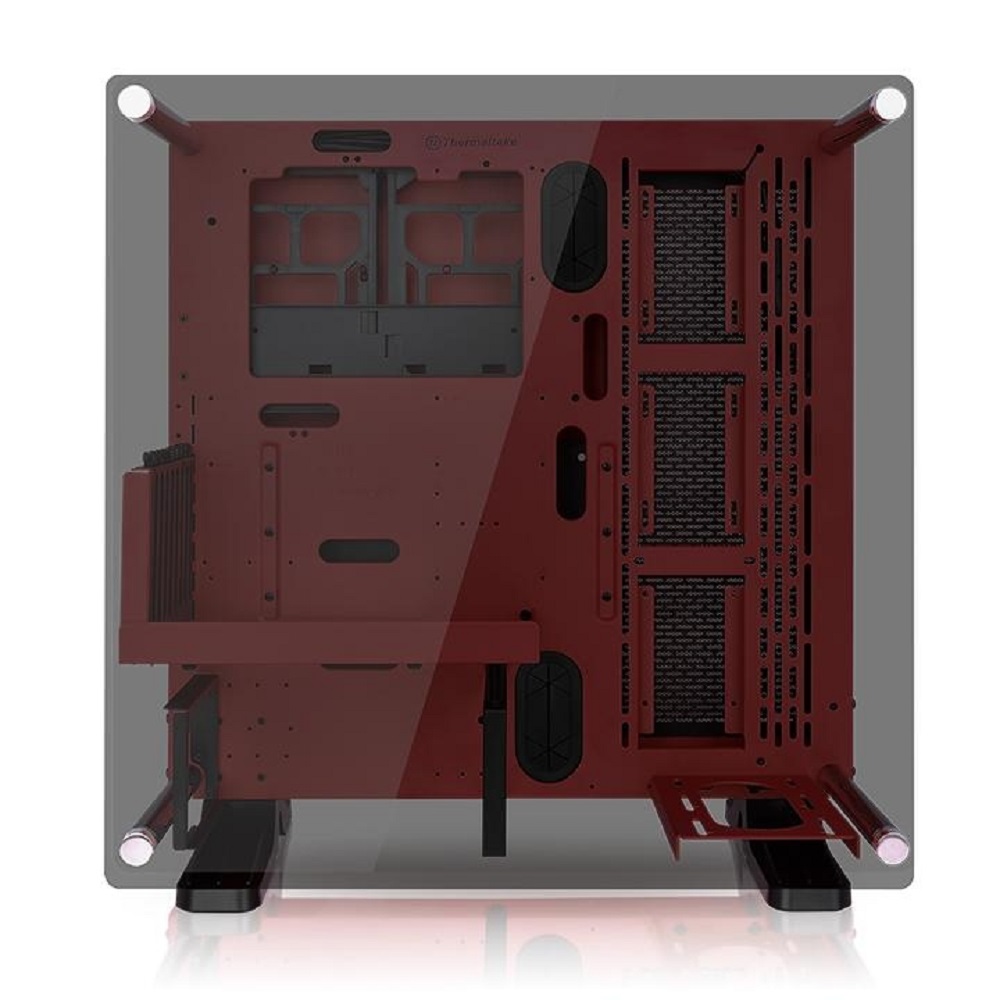

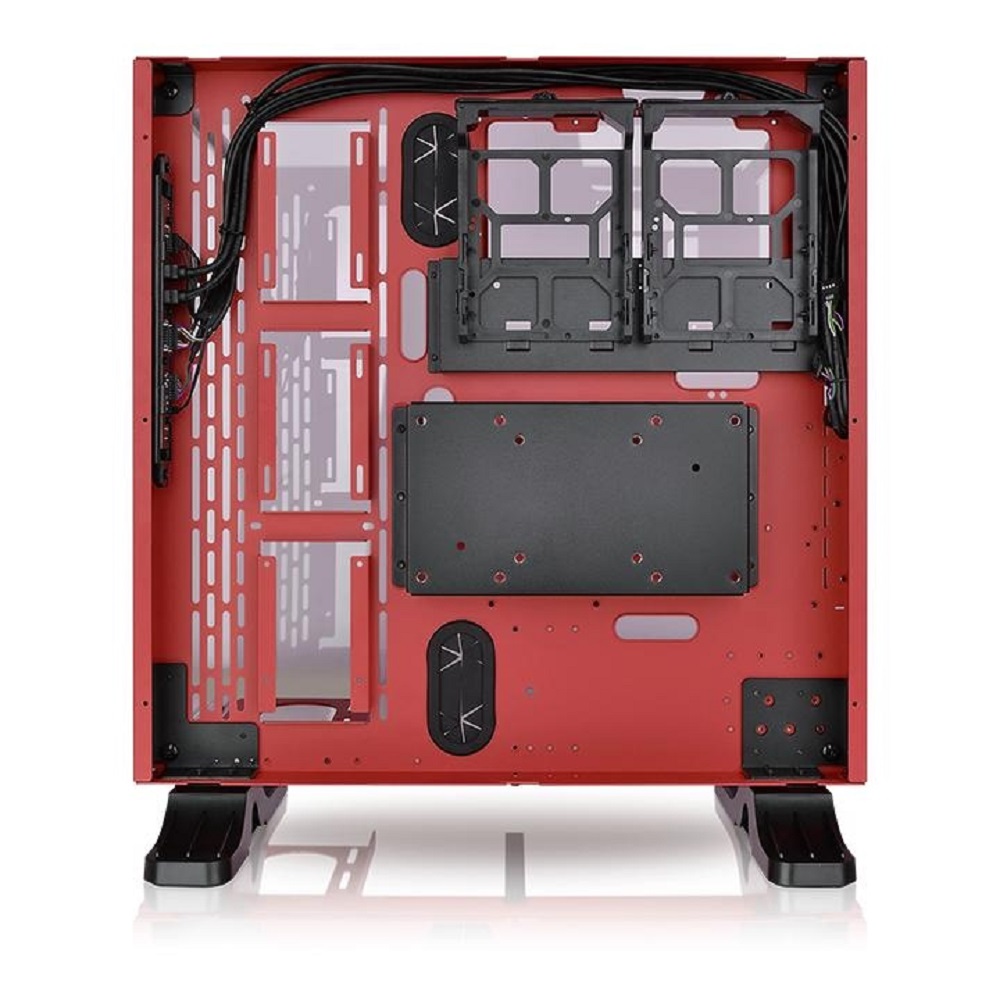

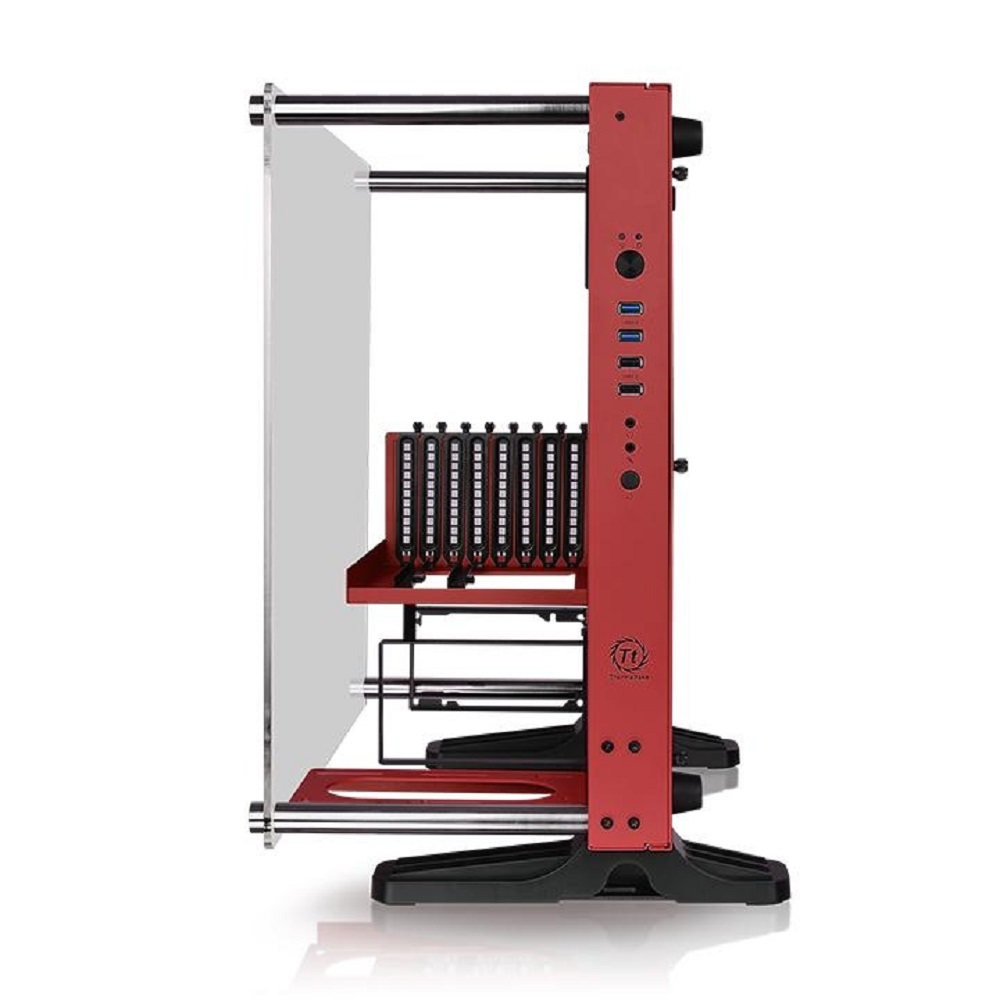

| Brand | Thermaltake |
|---|---|
| Series | Core P3 TG Red |
| Model | CA-1G4-00M6WN-05 |
| Type | ATX Open Frame Chassis |
|---|---|
| Color | Red |
| Case Material | SPCC |
| With Power Supply | No |
| Power Supply Mounted | Bottom |
| Motherboard Compatibility | Micro ATX / ATX / Mini-ITX |
| Side Panel Window | 1 x Tempered Glass |
| External 5.25" Drive Bays | 0 |
|---|---|
| Internal 3.5" Drive Bays | 4 x 2.5"/3.5" - (2x) hidden drive mounts |
| Expansion Slots | 8 |
| Front Ports | 2 x USB 3.0 / 2 x USB 2.0 / 1 x Mic / 1 x Headphone |
|---|
| Fan Options | Left Side: 3 x 120mm or 3 x 140mm |
|---|---|
| Radiator Options | Side - Up to 360mm / Side - Up to 420mm |
| Max GPU Length | 280mm (With Reservoir) 320mm (Without Reservoir) |
|---|---|
| Max CPU Cooler Height | 180 mm |
| Max PSU Length | 220 mm |
| Dimensions (H x W x D) | 18.50" x 13.10" x 20.20" |
| Weight | 30.30 lbs. |
| Features | Fan Support (Optional) Left Side: 3 x 120mm 3 x 140mm Radiator Support (Optional) Left Side: 1 x 120mm or 1 x 240mm or 1 x 360mm 1 x 140mm or 1 x 280mm or 1 x 420mm VESA Compatibility: 200x200, 100x100, 75x75 CPU cooler height limitation: 180mm VGA length limitation: 280mm (With Reservoir), 320mm (Without Reservoir) PSU Length Limitation: 200mm |
|---|
