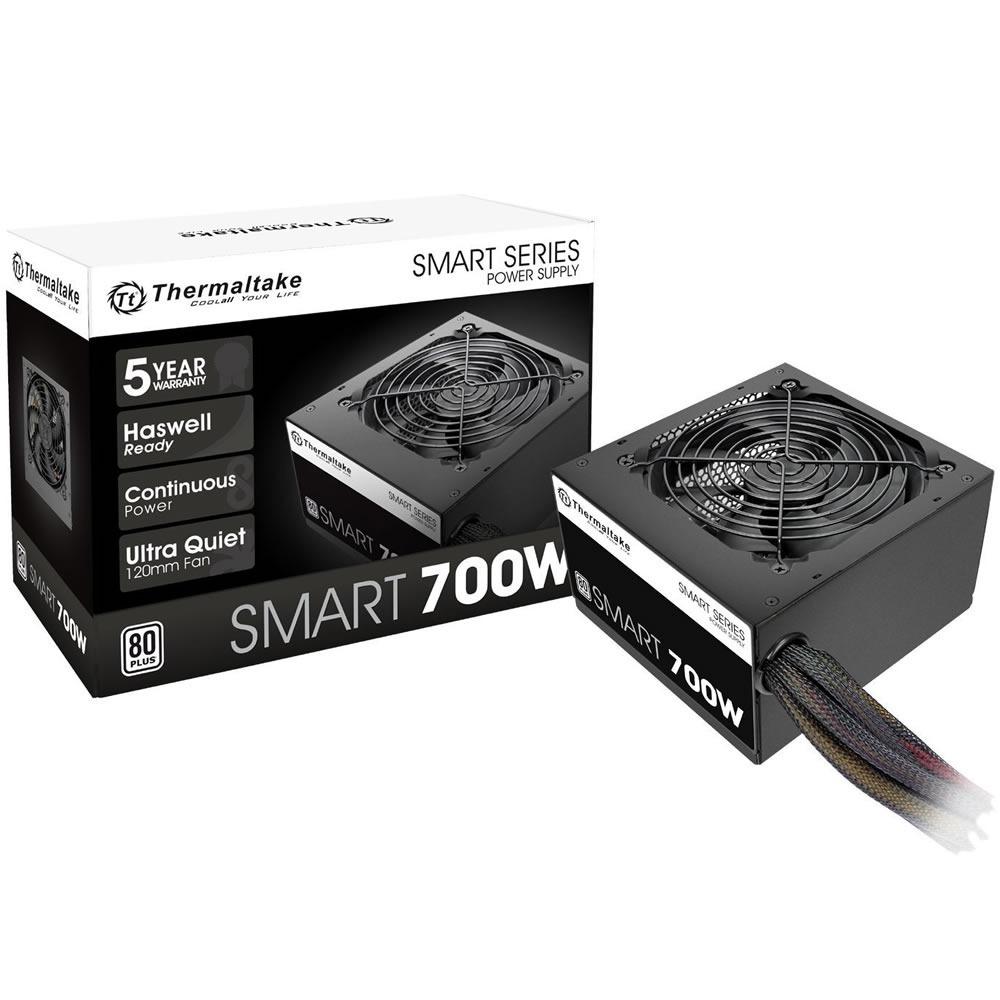

THERMALTAKE FUENTE SMART 700W PS-SPD-0700NPCWUS-W

Cod. BFXTT012

USD 82,00

iva inc.

Marca:

THERMALTAKE

Cantidad

Imágenes meramente ilustrativas

Descripción del producto

Details
Type	Intel ATX 12V 2.3
Maximum Power	700 W
Fans	1 x 120mm Fan (1800 RPM +/- 10%)
PFC	Active
Main Connector	24Pin
+12V Rails	Single
PCI-Express Connector	2 x 6+2-Pin
SATA Power Connector	6
SLI	SLI Ready
Haswell Support	Ready
CrossFire	CrossFire Ready
Modular	Non-Modular
Power Good Signal	100-500ms
Hold-up Time	16msec (minimum) within 60% load
Efficiency	80 - 87% efficiency @ 20 - 100% load
Energy-Efficient	80 PLUS Certified
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	12 A (Max.)
Output	+3.3V@24A, +5V@17A, +12V@54A, -12V@0.5A, +5VSB@2.5A
MTBF	>100,000 Hours
Approvals	CE, CB, TUV, UL, FCC
Max PSU Length	140 mm
Connectors	1 x 20+4-pin ATX 1 x 4+4-pin EPS 2 x 6+2 PCI-E 6 x SATA 5 x Peripheral 1 x Floppy

Features
Features	Compliance with Intel ATX12V 2.31 & EPS12V 2.92 standards 80 PLUS Certified - 80% efficiency under typical load Single +12V rail Design Supports Intel C6 Status for improved efficiency Ultra-quiet 120mm fan with intelligent temperature control Hardlined cables for straight forward installation

Dimension & Weight
Dimensions	3.39" x 5.91" x 5.51"
Weight	4.65 lbs.

Connectors
SATA Power Connector	6
