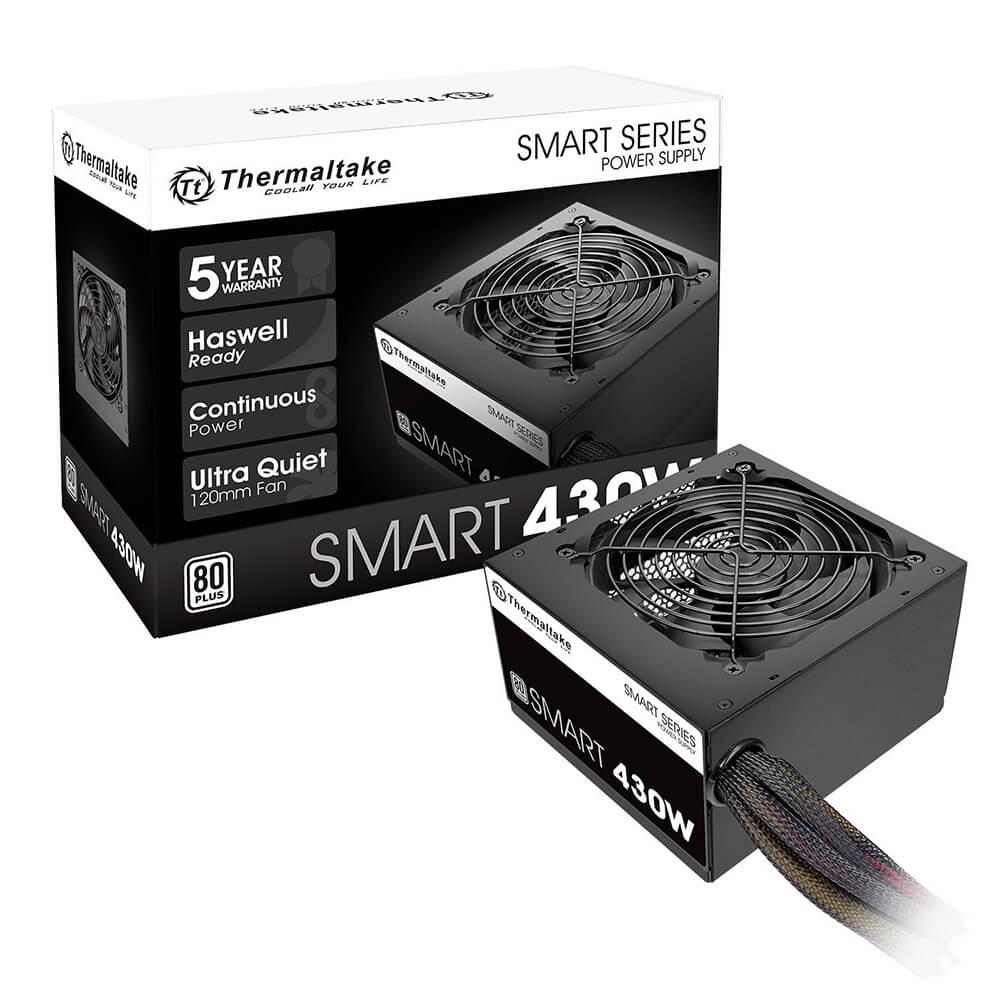

THERMALTAKE FUENTE 430W PS-SPD0430NPCWUS-W

Cod. BFXTT013

USD 53,00

iva inc.

Marca:

THERMALTAKE

Cantidad

Imágenes meramente ilustrativas

Descripción del producto

Details
Type	Intel ATX 12V 2.31 & EPS 12V 2.92
Maximum Power	430 W
Fans	120mm Intelligent Cooling Fan
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	2 x 6+2-Pin
SATA Power Connector	4
Haswell Support	Yes
Modular	Hardlined
Hold-up Time	16msec (minimum) within 80% load
Efficiency	80% Efficiency
Energy-Efficient	80 PLUS Certified
Over Voltage Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	50Hz - 60Hz
Input Current	8A
Output	+3.3V@20A, +5V@13A, +12V@32A, -12V@0.5A, +5VSB@2.5A
MTBF	100,000 Hours
Approvals	CE / CB / TUV / UL / FCC
Max PSU Length	140 mm
Connectors	1 x 20+4pin ATX 1 x 4+4pin EPS 2 x 6+2 PCI-E 4 x SATA 4 x Peripheral 1 x Floppy

Features
Features	Compliance with Intel ATX 12V 2.31 & EPS 12V 2.92 standards 80 PLUS Certified - 80% efficiency under typical load Single +12V rail Design Supports Intel C6/C7 Status for improved efficiency Ultra-quiet 120mm fan with intelligent temperature control Hardlined cables for straight forward installation

Dimension & Weight
Dimensions	3.39" x 5.91" x 5.51"
Weight	3.95
