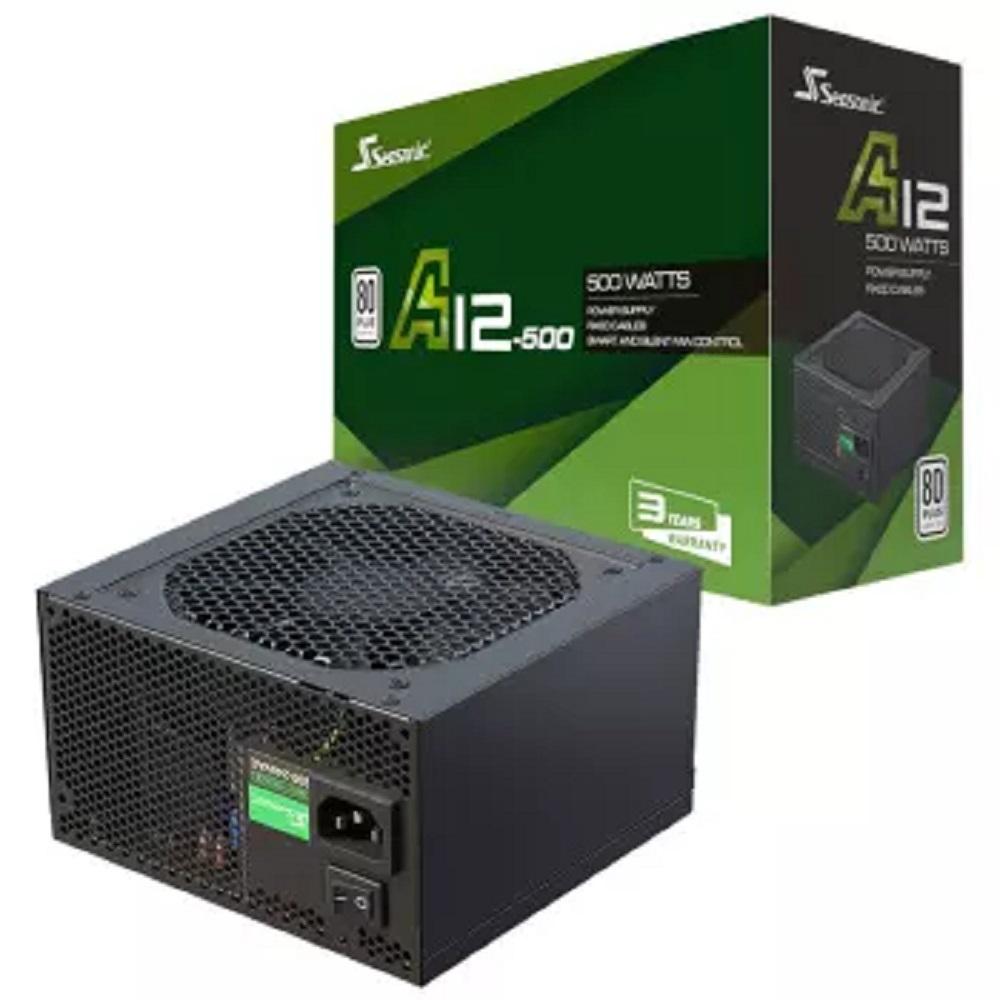

| Brand | SEANSONIC |
|---|---|
| Series | A12-500 (500w) |
| Model | SSR-500RA |
80PLUS® 230V EU Form Factor Intel ATX 12 V Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H |
Fan Size 120 mm Fan Control Seasonic S2FC Fan Bearing Sleeve bearing Life Expectancy 30,000 hours at 40 °C, 15 % - 65 % RH |
Modularity Fixed cable Cable type Flat black cables |
Operating Temperature 40 °C MTBF @ 25 °C, excl. fan 100,000 hours AC Input Fixed 230 V Protection OPP, OVP, UVP, SCP |
AC Input Voltage: 200 V - 240 V Current: 4 A Frequency: 50 Hz - 60 Hz |
Rail +3.3 V +5 V +12 V -12 V +5 VSB Maximum Power 18 A 18 A 48 A 0.3 A 2.5 A 90 W 480 W 3.6 W 12.5 W Total continuous power 500 W |
Main Power (24/20 pins) 1/1 x 550 mm - attached CPU (8/4 pins) 1 1 x 600 mm - 8/4 pins attached PCIe (8/6 pins) 4 2 x 600 + 75 mm - 8/6 pins attached SATA 4 2 x 350 + 120 mm - attached Peripheral 2/2 x 120 mm - end connector of the SATA cable |
