Inicio / COMPONENTES / FUENTES / SEASONIC

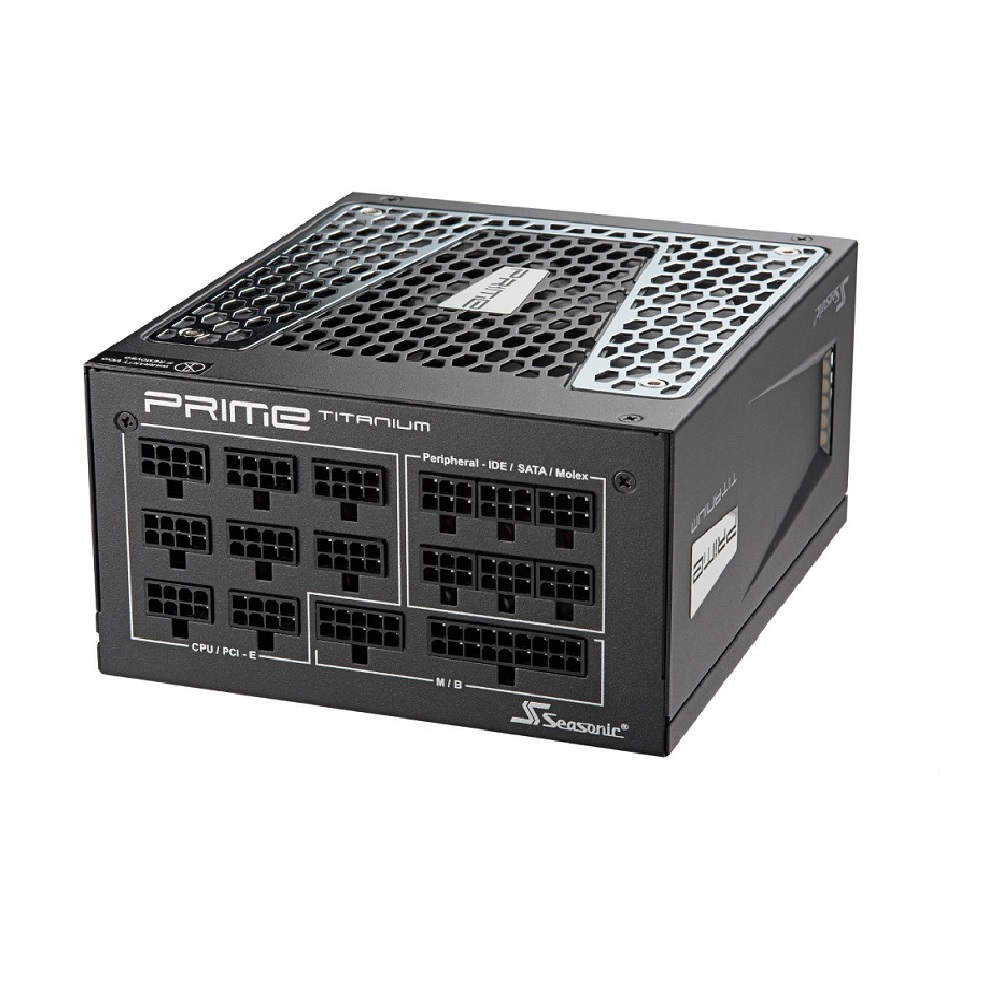

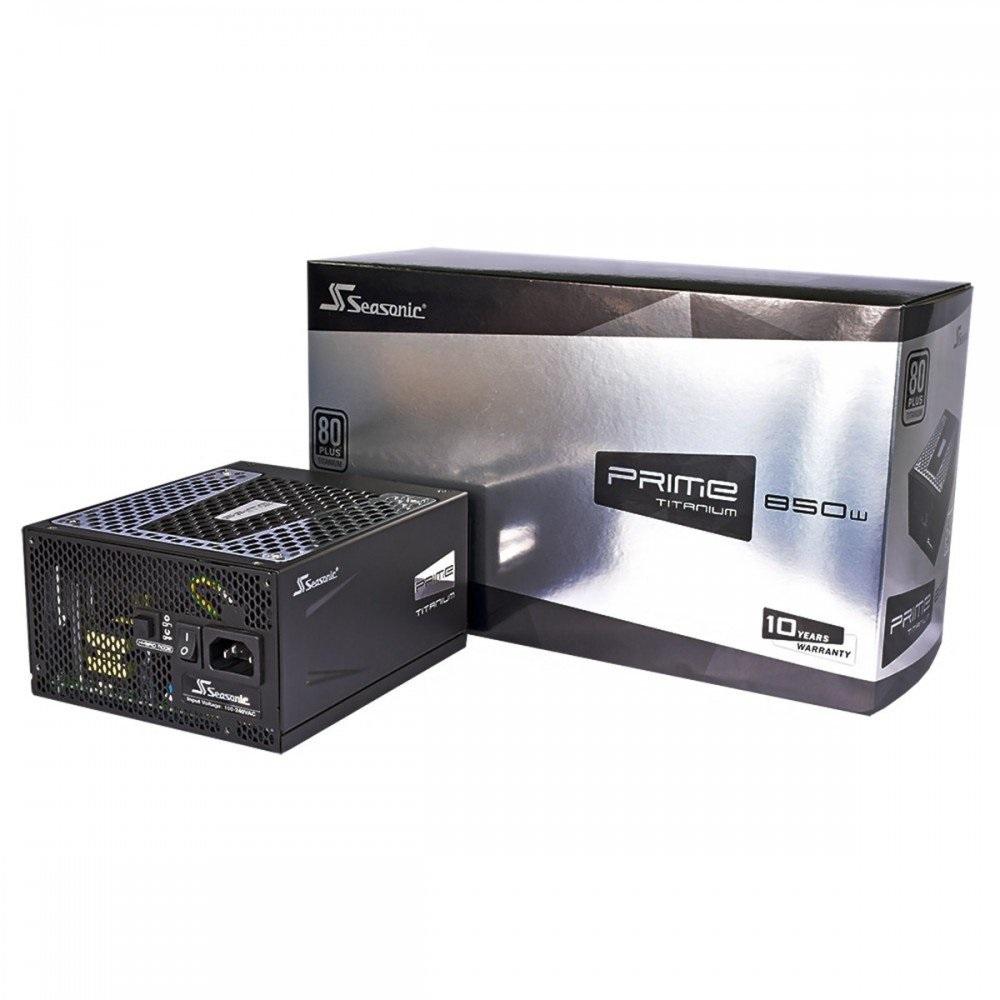

SEASONIC FUENTE PRIME TITANIUM 850W (SSR-850TR)

Cod. BFXSSF05

USD 328,00

iva inc.

Marca:

SEASONIC

Cantidad

Imágenes meramente ilustrativas

Descripción del producto

Details
Type	ATX12V / EPS12V
Maximum Power	850 W
Fans	135mm Fluid Dynamic Bearing Fan w/ Hybrid Fan Control Fan Control: Premium Hybrid Fan Control Fan Bearing: Fluid Dynamic Bearing Life Expectancy: 50,000 hours at 40 degree centigrade, 15% - 65% RH
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	6 x 6+2-Pin
SATA Power Connector	10
Modular	Full Modular
Efficiency	94 % efficiency at 50 % system load
Energy-Efficient	80 PLUS TITANIUM Certified
Over Voltage Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	11 - 5.5 A
Output	+3.3V@20A, +5V@20A, +12V@70A, -12V@0.3A, +5VSB@2.5A
MTBF	150,000 Hours MTBF at 25 degree centigrade, excl. fan: 150,000 hours
Approvals	Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Max PSU Length	170 mm
Connectors	1 x Main Power 24/20 pins 2 x CPU 4/8 Pin 6 x PCI-E 6/8 Pin 10 x SATA 5 x Peripheral 1 x FDD

Features
Features	80 PLUS Titanium Fluid Dyanamic Fan Bearing Premium Hybrid Fan Control Micro Tolerance Load Regulation Extended Hold-up Time (30 ms) Super Low Ripple Noise (20 mV) Cable-free Connection Design Cable type: Flat black cables Operating Temperature: 0 - 50 degree centigrade

Dimension & Weight
Dimensions	3.39" x 5.91" x 6.70"
Weight	9.20 lbs.
