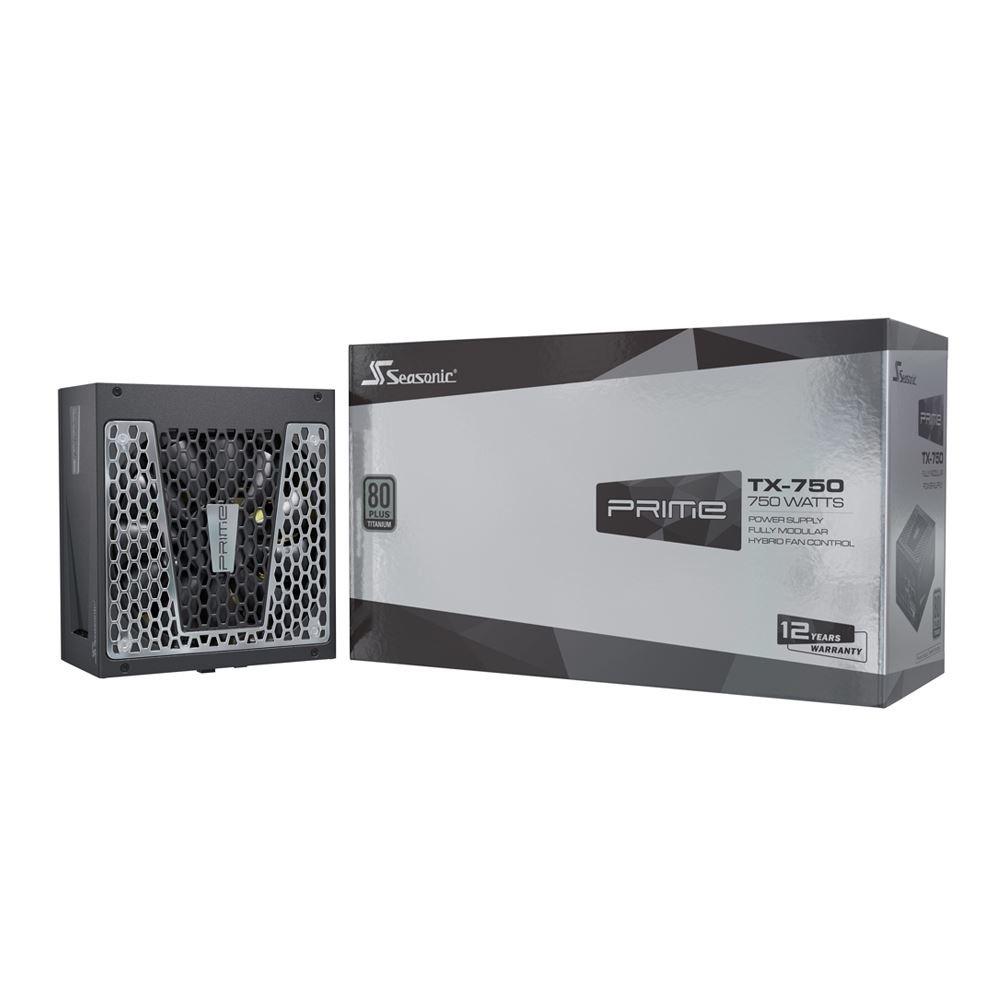

SEASONIC FUENTE PRIME TITANIUM 750W (SSR-750TR)

Cod. BFXSEF80

USD 284,00

iva inc.

Marca:

SEASONIC

Cantidad

Imágenes meramente ilustrativas

Descripción del producto

Details
Type	Intel ATX 12 V
Maximum Power	750 W

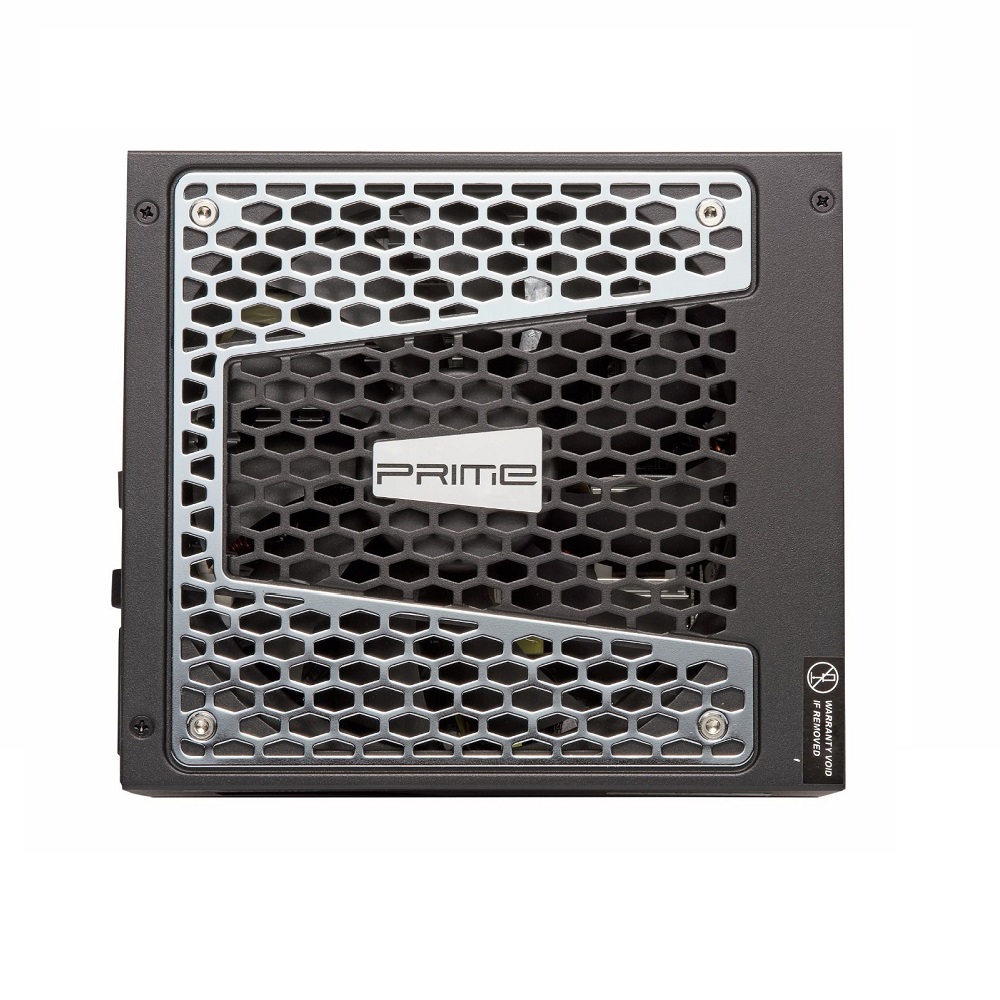

Fans	135mm Fluid Dynamic Bearing Fan w/ Hybrid Fan Control
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	4 x 6+2-Pin
SATA Power Connector	10
Modular	Full Modular
Efficiency	94% @ 50% Load
Energy-Efficient	80 PLUS TITANIUM Certified
Over Voltage Protection	Yes
Protection	OPP, OVP, UVP, OCP, OTP, SCP
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	9.5 - 4.5 A
Output	+3.3V@20A, +5V@20A, +12V@62A, -12V@0.3A, +5VSB@3A
MTBF	150,000 hours MTBF @ 25 degree C, excl. fan
Approvals	Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Max PSU Length	170 mm

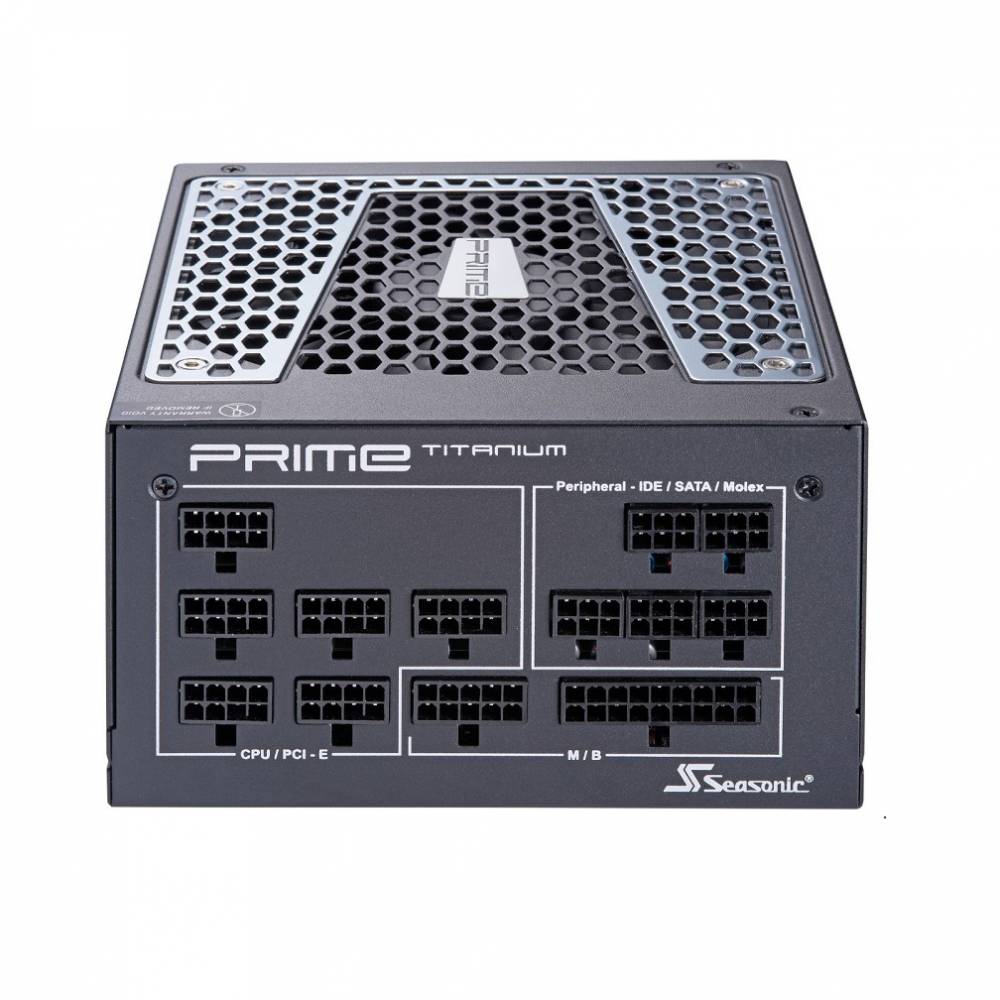

Connectors	1 x Main Power (20/24 pins) 2 x CPU (4/8 pins) 4 x PCIe (6/8 Pins) 10 x SATA 3 x Peripheral
Cable Spec	20+4Pin MB: One cable (610mm) 4+4Pin CPU: Two cables (650mm) PCI-E 6+2Pin: Four cables (750mm) 4 x SATA: Two cables (810, 860mm) 2 x SATA: One cable (450mm) 3 x Molex: One cable (690mm) Molex to SATA 3.3 Adapter: One cable (300mm)

Features
Features	80 PLUS Titanium certified Micro Tolerance Load Regulation (0.5 %) Cable-free Connection Design Premium Hybrid Fan Control - Fanless until 40 % load Multi-GPU setup Gold plated connectors

Dimension & Weight
Dimensions	3.39" x 5.91" x 6.69"
Weight	8.10 lbs.
