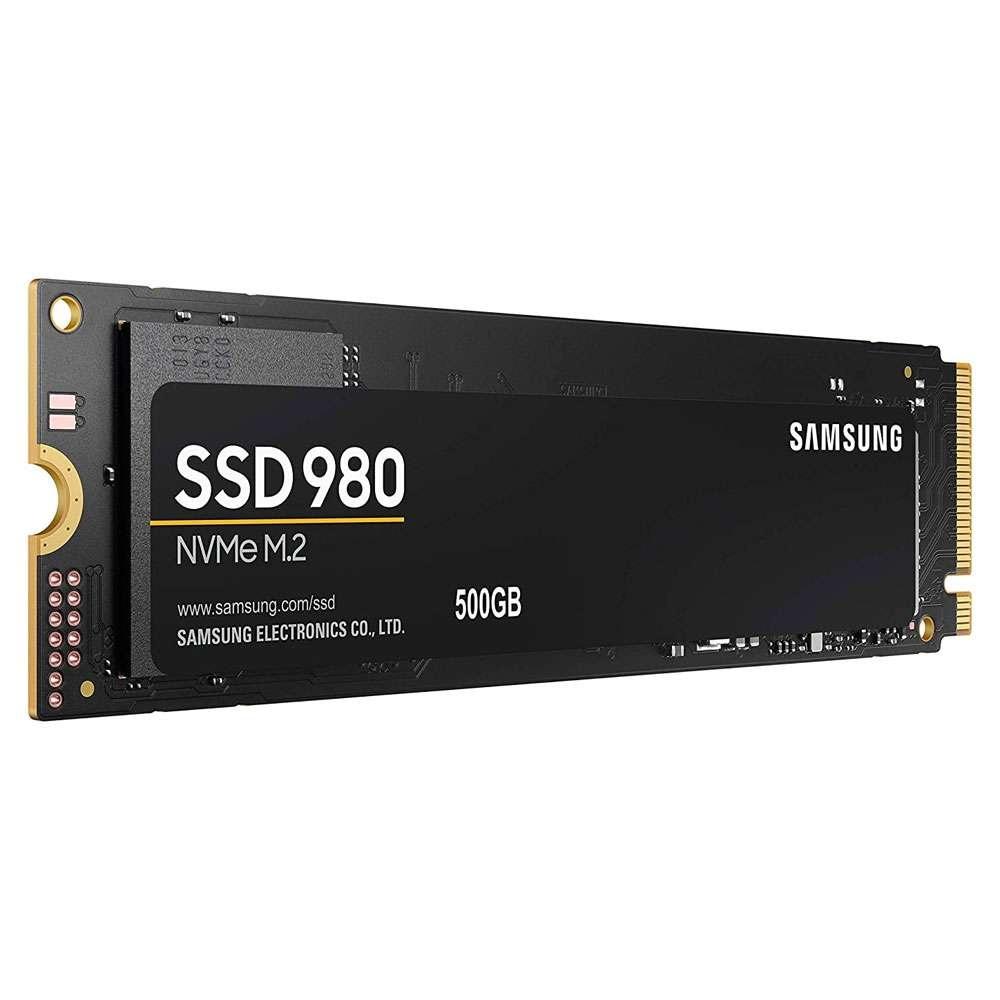

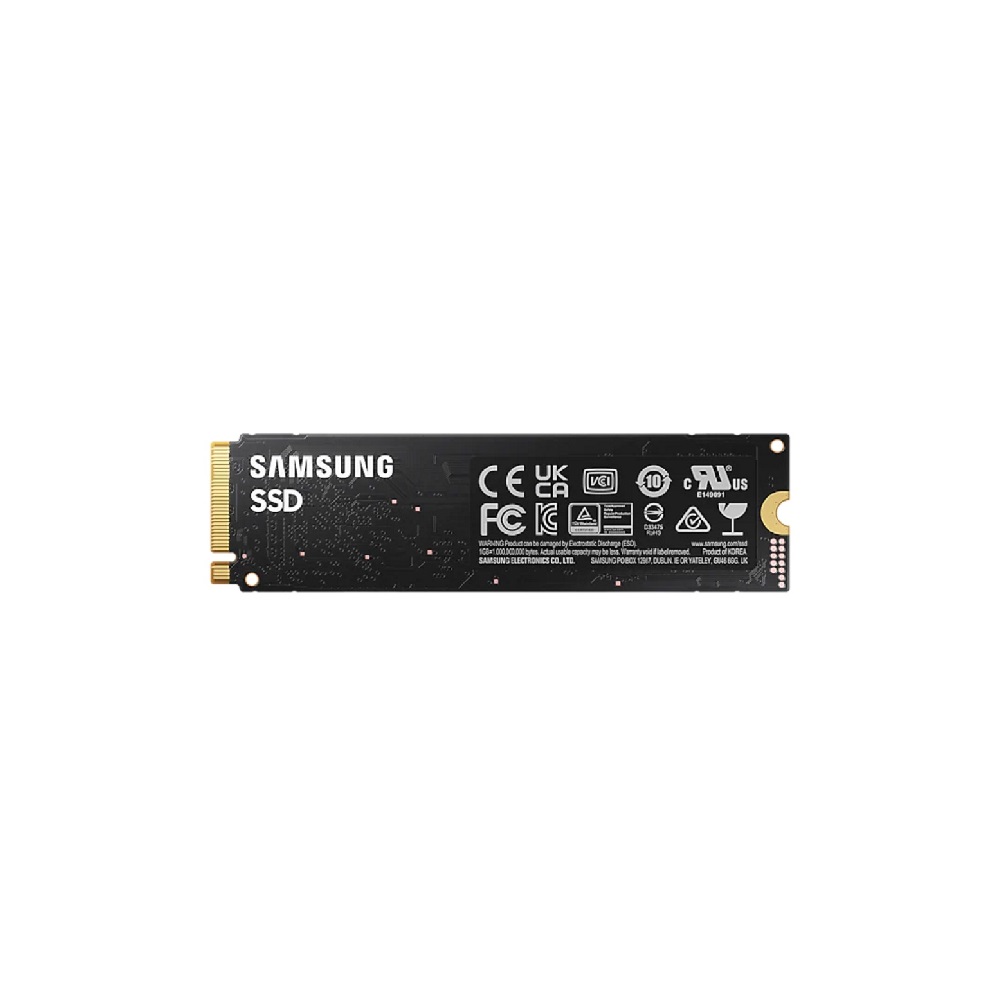

| Brand | SAMSUNG |
|---|---|
| Series | 980 |
| Model | MZ-V8V500B/AM |
| Device Type | Internal Solid State Drive (SSD) |
| Used For | Consumer |
| Form Factor | M.2 2280 |
|---|---|
| Capacity | 500GB |
| Memory Components | V-NAND MLC |
| Interface | PCI-Express 3.0 x4, NVMe 1.4 |
| Controller | Pablo |
| Features | SOLID PERFORMANCE - Solid performance with Seq. Read/Write speeds up to 3,100/2,600 MB/s - Intelligent TurboWrite 2.0 maximize full potential performance with enlarged TurboWrite region up to 5.5 times - Host Memory Buffer (HMB) links DRAM in the host directly to the 980 to overcome performance restrain from DRAMless - Full Power Mode through Magician 6.3 allows the 980 to run at peak level for nonstop for a consistent high performance PROVEN RELIABILITY - Uncompromising endurance with reliability up to 300TBW - Thermal control solution provides 50% less heat vs. the 970 EVO OPTIMIZED EFFICIENCY - Power consumption is reduced up to 32% and power efficiency is improved up to 56% vs. 970 EVO |
|---|
| Power Consumption (Idle) | Max. 45 mW |
|---|---|
| Power Consumption (Active) | 4.3W |
| Max Shock Resistance | 1,500G & 0.5 ms (Half sine) |
| Height | 2.38mm |
|---|---|
| Width | 22.15mm |
| Depth | 80.15mm |
