| Brand | MSI |
|---|---|

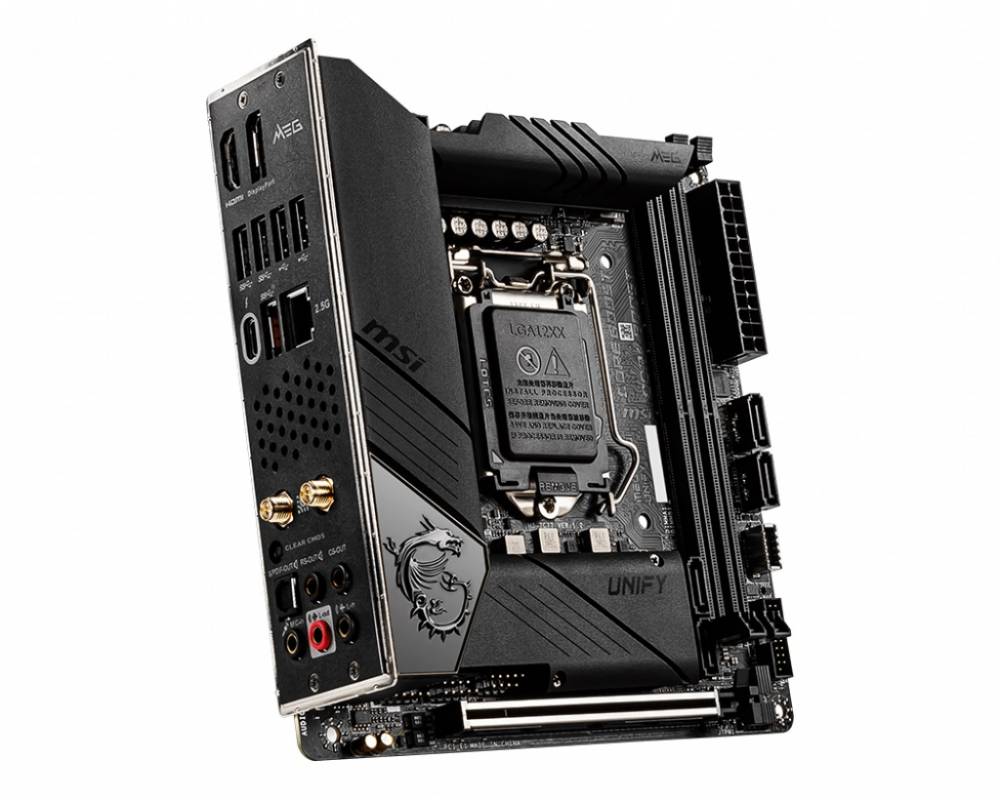

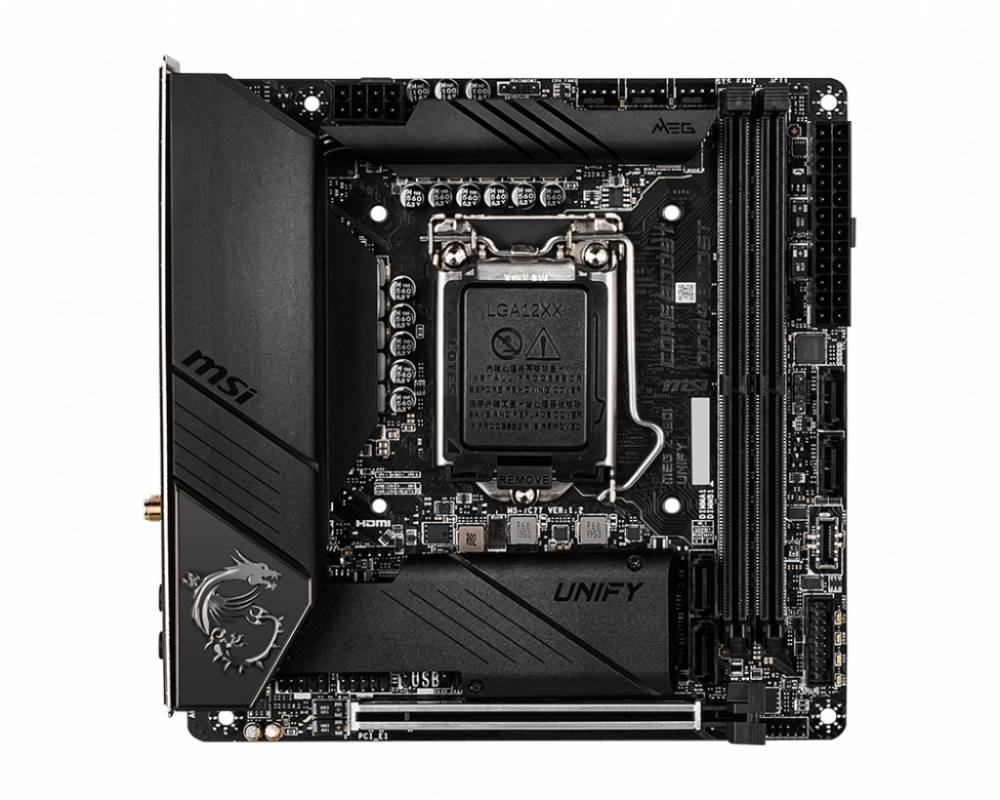

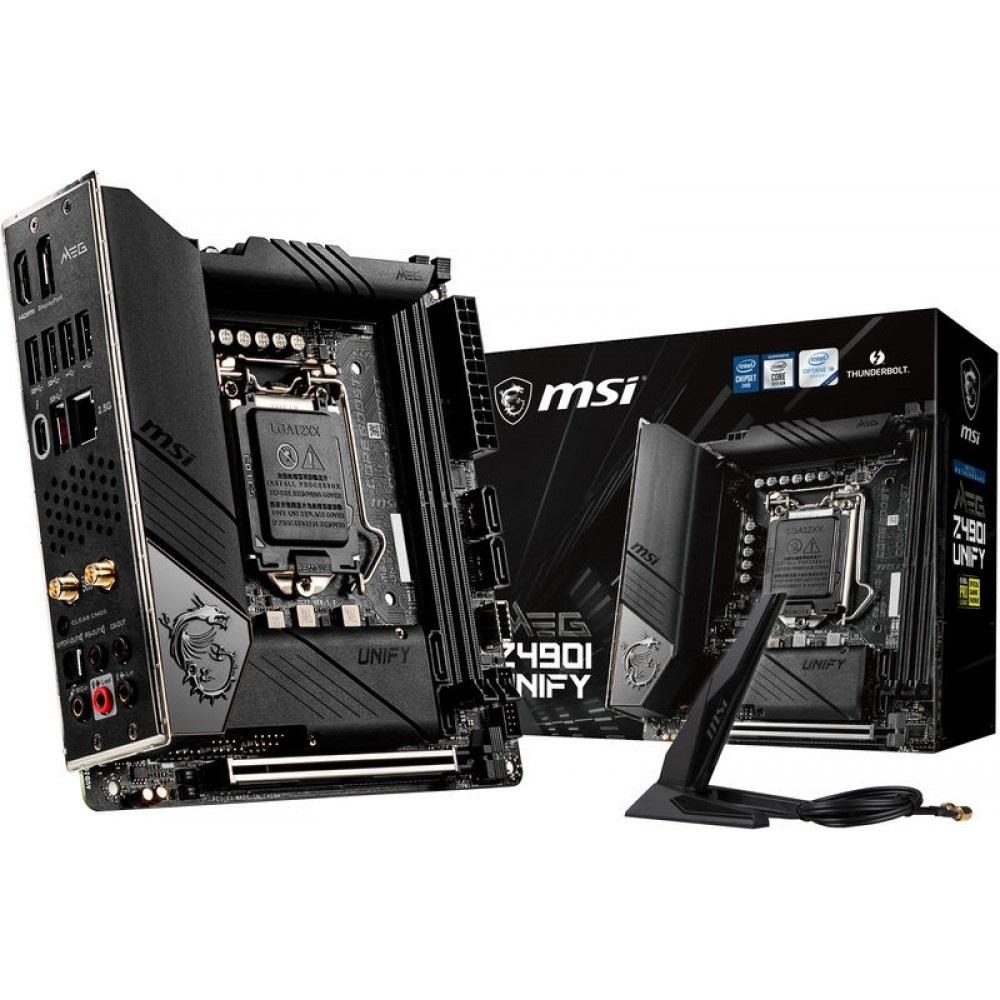

| Model | MEG Z490I UNIFY |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 10th Gen Intel Core and Pentium Gold / Celeron processors |
| Chipset | Intel Z490 |
|---|
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|
| Audio Chipset | Realtek ALC1220 |
|---|---|
| Audio Channels | 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN Chipset | Realtek RTL8125B |
|---|---|
| Max LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN | Intel AX201 The Wireless module is pre-installed in the M.2 [Key-E] slot Supports MU-MIMO TX/RX, 2.4GHz/5GHz [160MHz] up to 2.4Gbps Supports 802.11ac WiFi 6 pre-certified |
| Bluetooth | Supports Bluetooth 5.1, FIPS, FISMA |

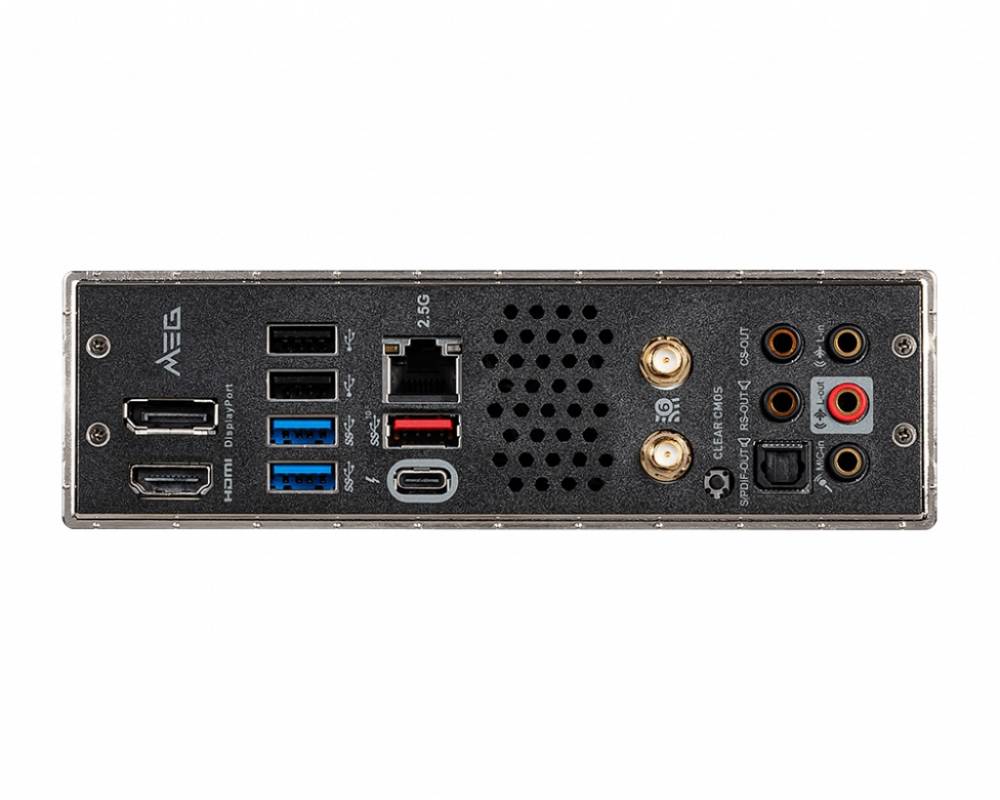

| Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x Thunderbolt 3 / 1 x USB 3.2 Gen 2 Type-A / 2 x USB 2.0/1.1 / 2 x USB 3.2 Gen 1 / 5 x Audio Jacks |
|---|
| Onboard USB | 1 x USB 3.2 Gen2 10Gbps Type-C port 1 x USB 3.2 Gen1 5Gbps connector [supports additional 2 USB 3.2 Gen1 5Gbps ports] 1 x USB 2.0 connector [supports additional 2 USB 2.0 ports] |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 2 x 3-pin RAINBOW LED connectors 1 x TPM module connector |
| Form Factor | Mini ITX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Windows 11 | Supported |
|---|
| Features | Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket Supports DDR4 Memory, up to 5000(OC) MHz Ready 4 the Future: Support Lightning Gen 4 Solution for the future Thunderbolt 3 ports: Experience Thunderbolt 3 with unprecedented interface bandwidth speeds up to 40Gbp and support for up to six daisy-chained devices Extreme Power Design: INTERSIL digital PWM, direct 8 phases with 90A Smart Power Stage and Titanium Choke III unleash the true power of your processors Outstanding Cooling Solution: Frozr Heatsink, VRM Heat-pipe, Aluminum Cover and M.2 Shield Frozr ensure the extreme performance with low temp Latest Network Solution: Onboard 2.5G LAN and latest Wi-Fi 6 solution deliver the best online experience without lag Twin Turbo M.2 with Shield Frozr: Turbo M.2 delivers PCI-E Gen3 x4 performance with transfer speeds up to 32Gb/s for the latest SSDs Pre-installed I/O Shielding: Better EMI protection and more convenience for installation |
|---|
