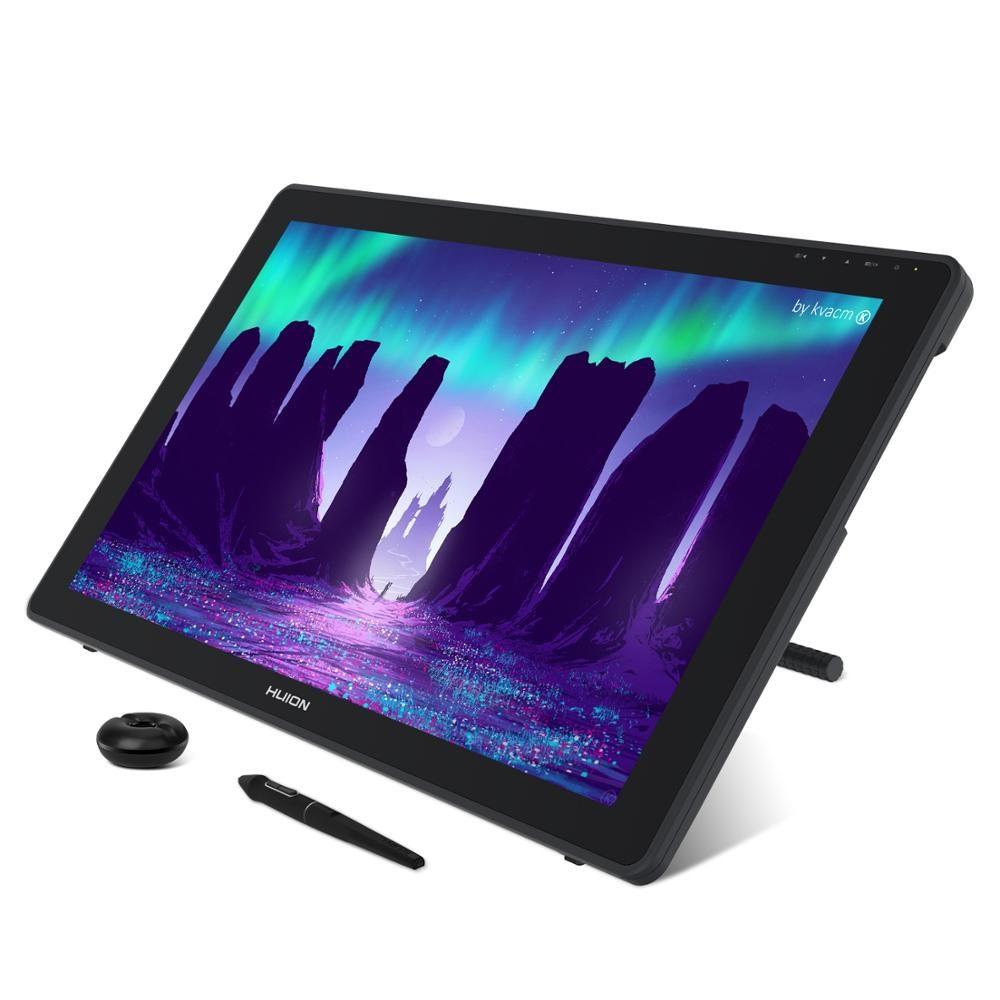

HUION TABLET KAMVAS 22

Product NameKamvas 22

Product ModelGS2201

ColorBlack

Panel Size21.5inch (Diagonal)

Resolution1920 x 1080 (16:9)

PPI (Pixels Per Inch)102 PPI

LCD TypeIPS

Active Area476.64 x 268.11mm

Contrast RatioKamvas 22: 1000:1 Brightness220cd/m2 (Max.)

Response Time14ms

Viewing Angle89°/89°(H)/89°/89°(V) (Typ.)(CR＞10)

GamutKamvas 22: 120% sRGB Display Color16.7M (8bit)

Pen TechnologyBattery-Free Electromagnetic Resonance

Pen Resolution5080 LPI

Pressure Levels8192 Levels

Accuracy±0.3mm (Center), ±2mm (Corner)

Reading Height10mm

Tilt Recognition±60°

Finger Touch——

Digital PenPW517

Input VoltageAC 100-240V, 50/60Hz

Output Voltage12V 3A

Video InterfaceUSB-C × 2; USB-A × 1

Press Keys——

Adjustable StandST100A (Grey)

OS SupportWindows 7 or later, macOS 10.12 or later Android（USB3.1 DP1.2）

AG GlassKamvas 22: Anti-Glare Matte Film Full LaminationKamvas 22: NO Power Consumption≤24W

Standby Consumption≤0.3W

Working Temp. and Humidity0-40°C, 20-80%

Storage Temp. and Humidity-20°C~60°C, 10-90%

Dimension546 x 323 x 19~26.7 mm (Without Stand)

Net Weight3.9 KG (With Stand)

VESA Compatibility75 × 75mm

What's in the boxPen Display, Digital Pen PW517, Adjustable Stand ST100A, 3-in-1 Cable, USB-C to USB-C cable(Only Standard for Kamvas 22 Plus), Power Adapter, AC Cable, Pen Holder PH05A, Pen Nibs x 10, Pen Nib Clip, Glove, Cleaning Cloth, Quick Start Guide
