GIGABYTE PLACA B550 AORUS PRO AC
Inicio / COMPONENTES / MOTHERBOARD / AMD

GIGABYTE PLACA B550 AORUS PRO AC

Cod. BFXB5PA
USD 289,00
iva inc.
Ver descripción del producto
Marca:
GIGABYTE
¡De momento no contamos con este artículo! Comunicate con nosotros y te informaremos su próximo ingreso.
Imágenes meramente ilustrativas
Consultar por este producto
Leer Nuestra Política de Entregas y Devoluciones
Descripción del producto

Model
BrandGIGABYTE
ModelB550 AORUS PRO AC
Supported CPU
CPU Socket Type AM4
CPU TypeSupports AMD Ryzen 5000 Series processors*
Supports 3rd Generation AMD Ryzen processors
Supports 3rd Generation AMD Ryzen with Radeon Graphics processors

* Support for Ryzen 5000 Series with BIOS UPDATE. Refer to GIGABYTE website for CPU support list.
Chipsets
Chipset AMD B550
Memory
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 5400(OC) / 5200(OC) / 5000(OC) / 4866(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3600(OC) / 3333(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (3rd Gen AMD Ryzen with Radeon Graphics processors)

DDR4 5200(OC) / 5000(OC) / 4866(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3600(OC) / 3333(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (3rd Gen AMD Ryzen Processors)

DDR4 5100(OC) / 5000(OC) / 4866(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3600(OC) / 3333(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen 5000 series Processors)
Maximum Memory Supported128GB
Channel Supported Dual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Expansion Slots
PCI Express 4.0 x161 x PCI Express 4.0 x16*

* Actual support may vary by CPU.
PCI Express 3.0 x16 2 x PCI Express 3.0 x16*

* The M2B_SB connector shares bandwidth with the PCIEX4 slot. The PCIEX4 slot will become unavailable when an SSD is installed in the M2B_SB connectors.
* The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors. The PCIEX2 slot will become unavailable when a device is installed in the SATA3 4 or SATA3 5 connector.
PCI Express x12 x PCI Express x1
Storage Devices
SATA 6Gb/s 6 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
- 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
- 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
- support PCIe 3.0 x4/x2 SSDs
SATA RAID0/1/10
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Onboard Audio
Audio Chipset Realtek ALC1220-VB codec

* The back panel line out jack supports DSD audio.
Audio Channels 7.1 Channels
Onboard LAN
LAN ChipsetRealtek 2.5GbE LAN chip
Max LAN Speed10/100/1000/2500Mbps
Wireless LANIntel Wi-Fi 3168
WIFI802.11a/b/g/n/ac
BluetoothBluetooth 4.2

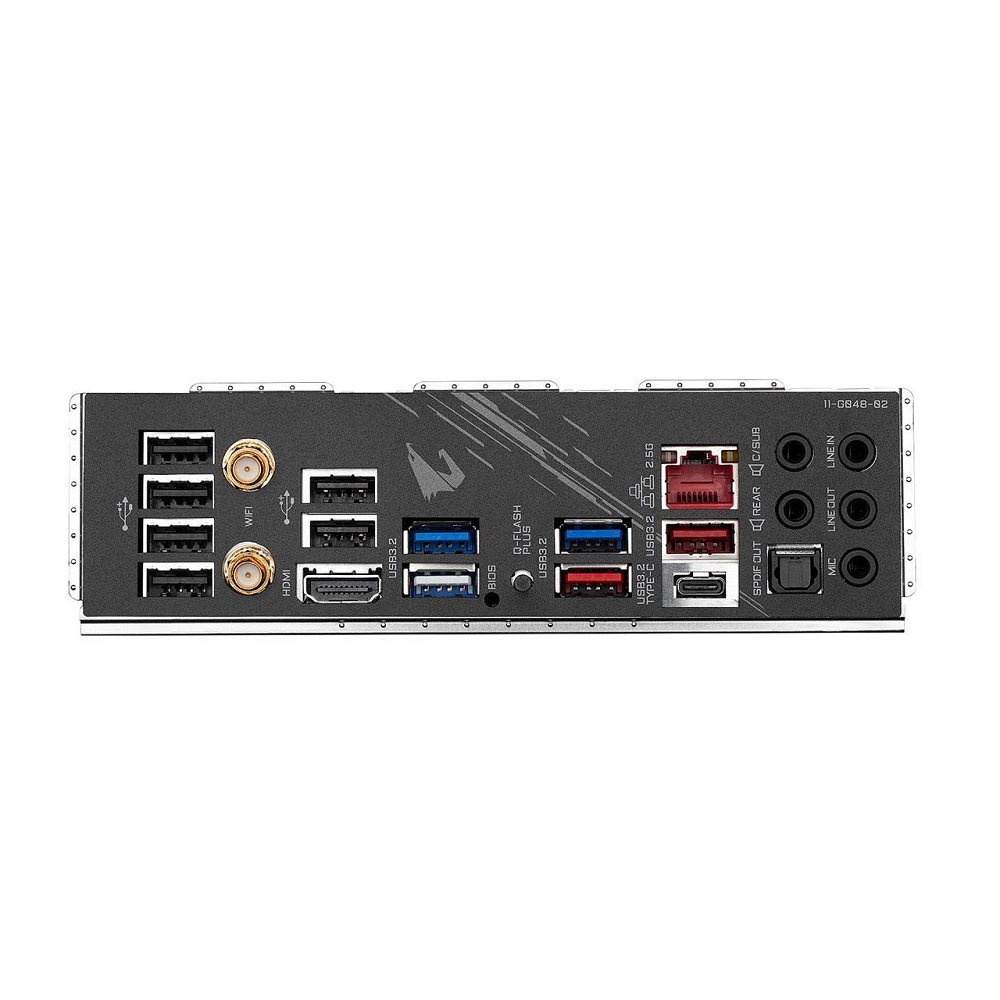

Rear Panel Ports
Back I/O Ports1 x HDMI port
2 x SMA antenna connectors (1T1R)
3 x USB 3.2 Gen 1 ports
1 x USB Type-C port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
6 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
Internal I/O Connectors
Onboard USB1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
1 x CPU cooler LED strip/RGB LED strip header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
2 x temperature sensor headers
1 x Clear CMOS jumper
Windows 11 Compatibility
Windows 11Supported
