| Brand | GIGABYTE |
|---|---|
| Series | Vision |
| Model | GV-N306TVISION OC-8GD |
| Interface | PCI Express 4.0 |
|---|
| Chipset Manufacturer | NVIDIA |
|---|---|
| GPU Series | NVIDIA GeForce RTX 30 Series |
| GPU | GeForce RTX 3060 Ti |
| Core Clock | 1755 MHz |
| CUDA Cores | 4864 |
| Effective Memory Clock | 14000 MHz |
|---|---|
| Memory Size | 8GB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 Ultimate |
|---|---|
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
|---|---|

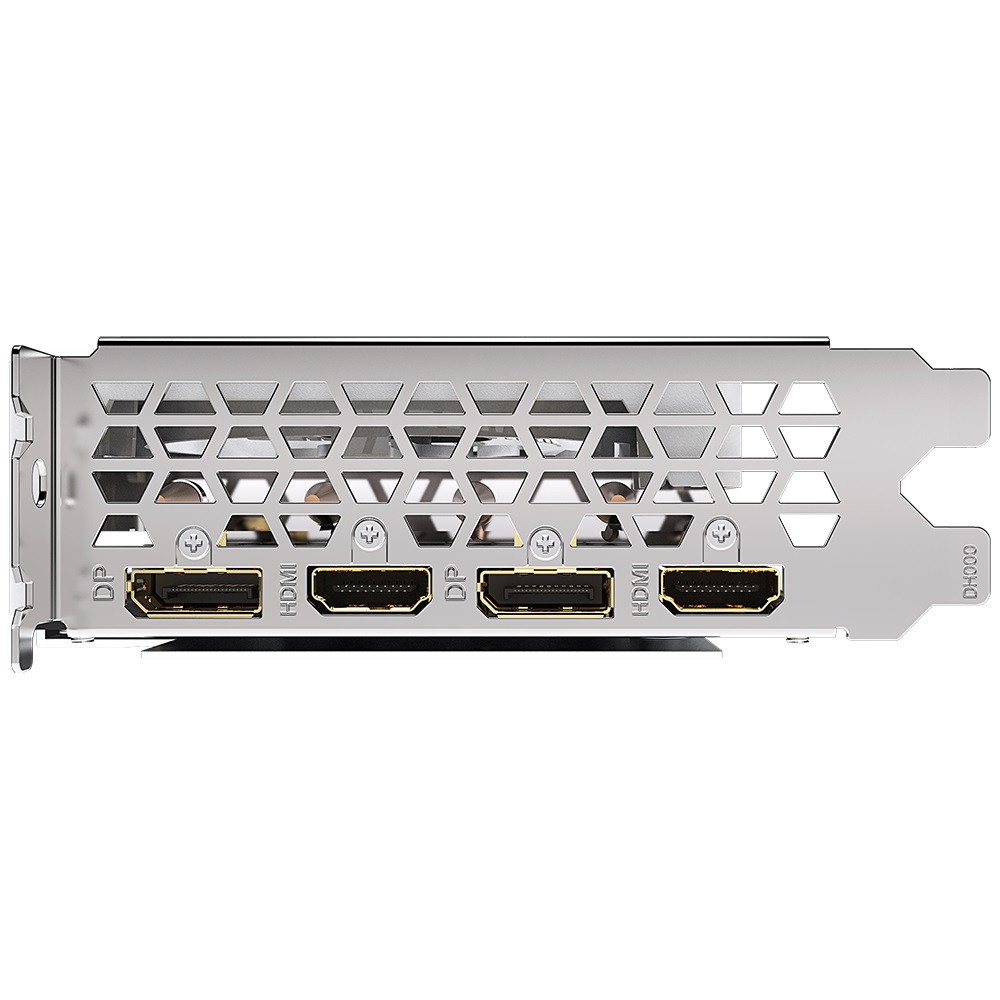

| HDMI | 2 x HDMI 2.1 |
| DisplayPort | 2 x DisplayPort 1.4a |
| Max Resolution | 7680 x 4320 |
|---|---|
| SLI Support | No |
| Virtual Reality Ready | Yes |

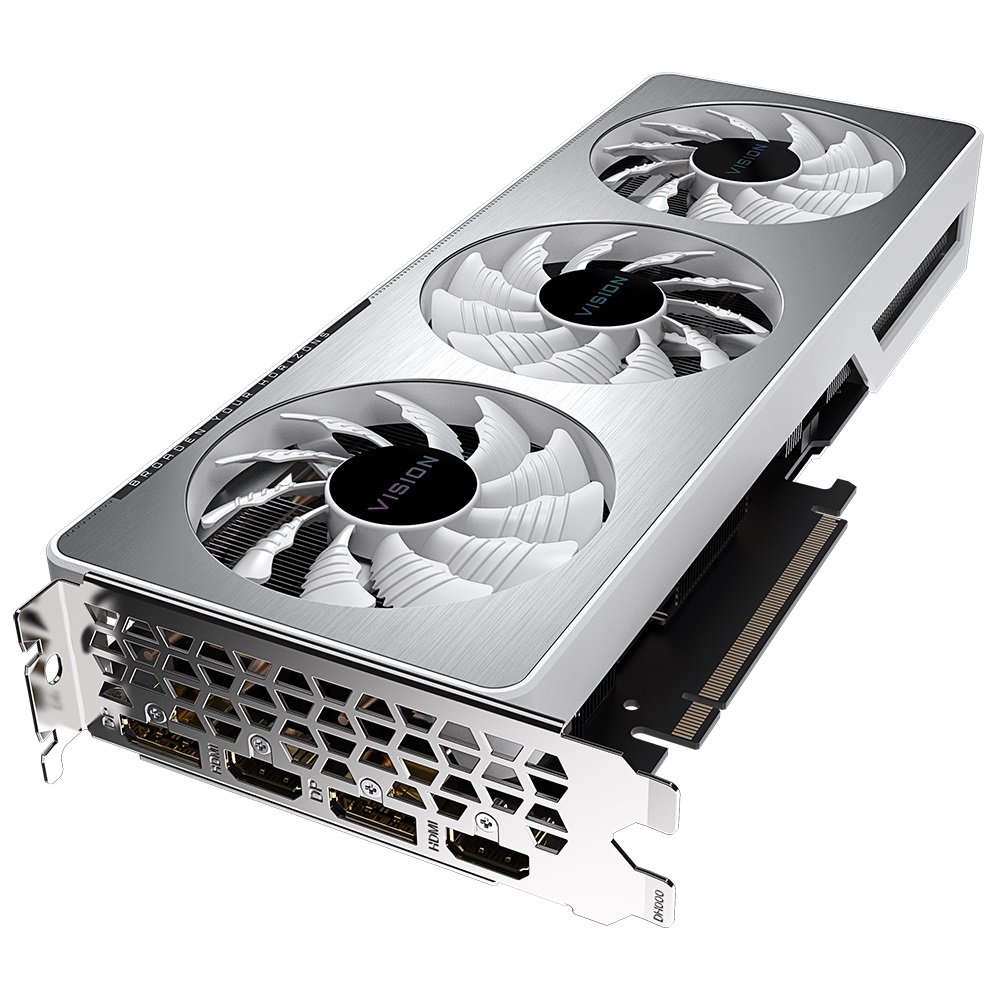

| Cooler | WINDFORCE 3X |
| Recommended PSU Wattage | 650W |
| Power Connector | 1 x 6-Pin + 1 x 8-Pin |

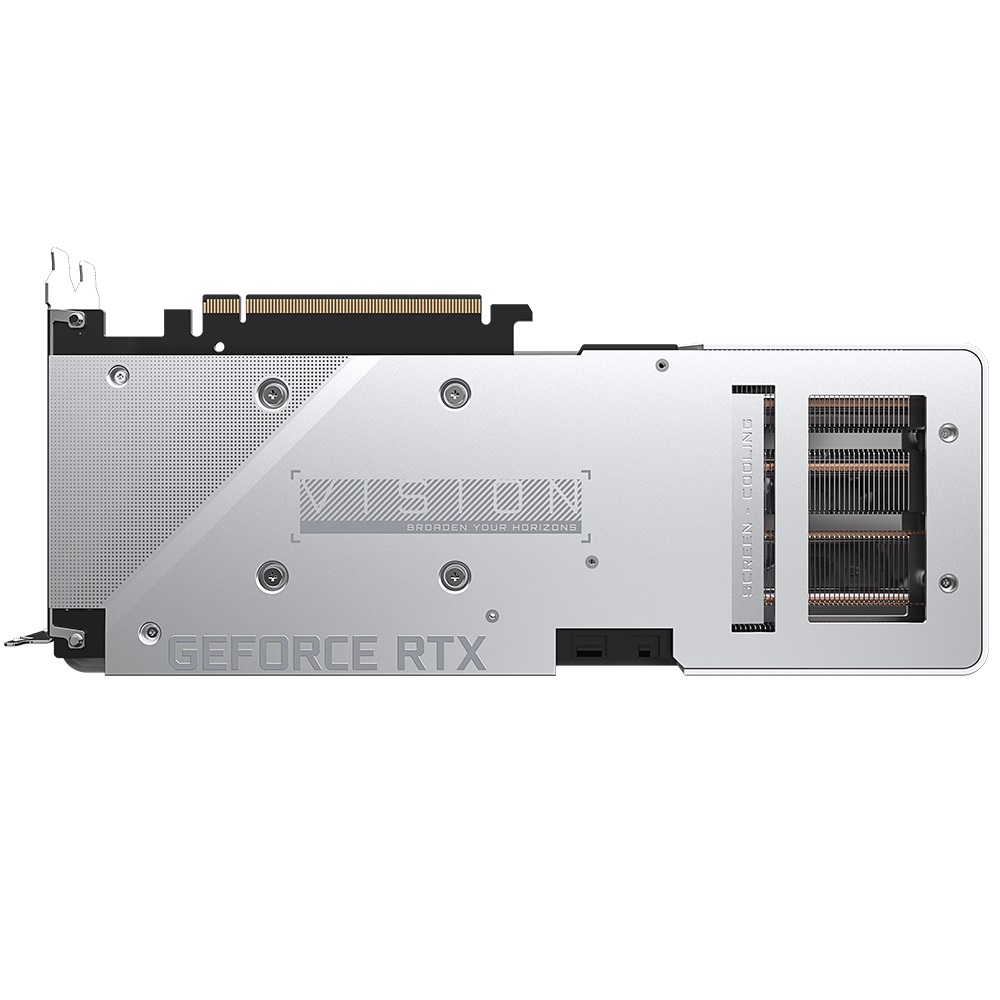

| Features | NVIDIA Ampere Streaming Multiprocessors 2nd Generation RT Cores 3rd Generation Tensor Cores Powered by GeForce RTX 3060 Ti Integrated with 8GB GDDR6 256-bit memory interface WINDFORCE 3X Cooling System with alternate spinning fans RGB Fusion 2.0 Protection metal back plate LHR (Lite Hash Rate) version |
|---|
| Form Factor | ATX |
|---|---|
| Max GPU Length | 281 mm |
| Card Dimensions (L x H) | 11.06" x 4.53" |
| Slot Width | Dual Slot |
