| Brand | GIGABYTE |
|---|---|
| Series | Gaming |
| Model | GV-R66XTGAMINGOC PRO-8GD |
| Interface | PCI Express 4.0 |
|---|
| Chipset Manufacturer | AMD |
|---|---|
| GPU Series | AMD Radeon RX 6000 Series |
| GPU | Radeon RX 6600 XT |
| Architechture | RDNA 2 |
| Stream Processors | 2048 Stream Processors |
| Effective Memory Clock | 16000 MHz |
|---|---|
| Memory Size | 8GB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 Ultimate |
|---|---|
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
|---|---|

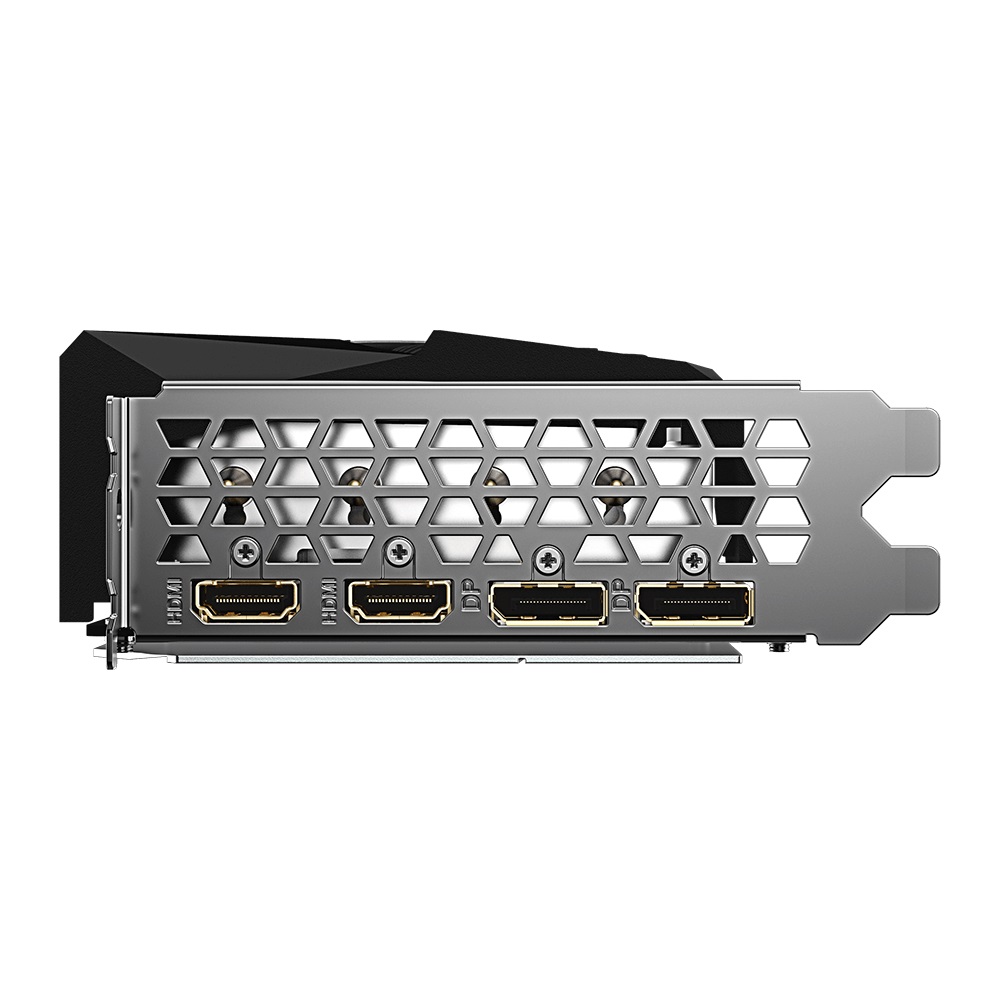

| HDMI | 2 x HDMI 2.1 |
| DisplayPort | 2 x DisplayPort 1.4a |
| Max Resolution | 7680 x 4320 |
|---|---|

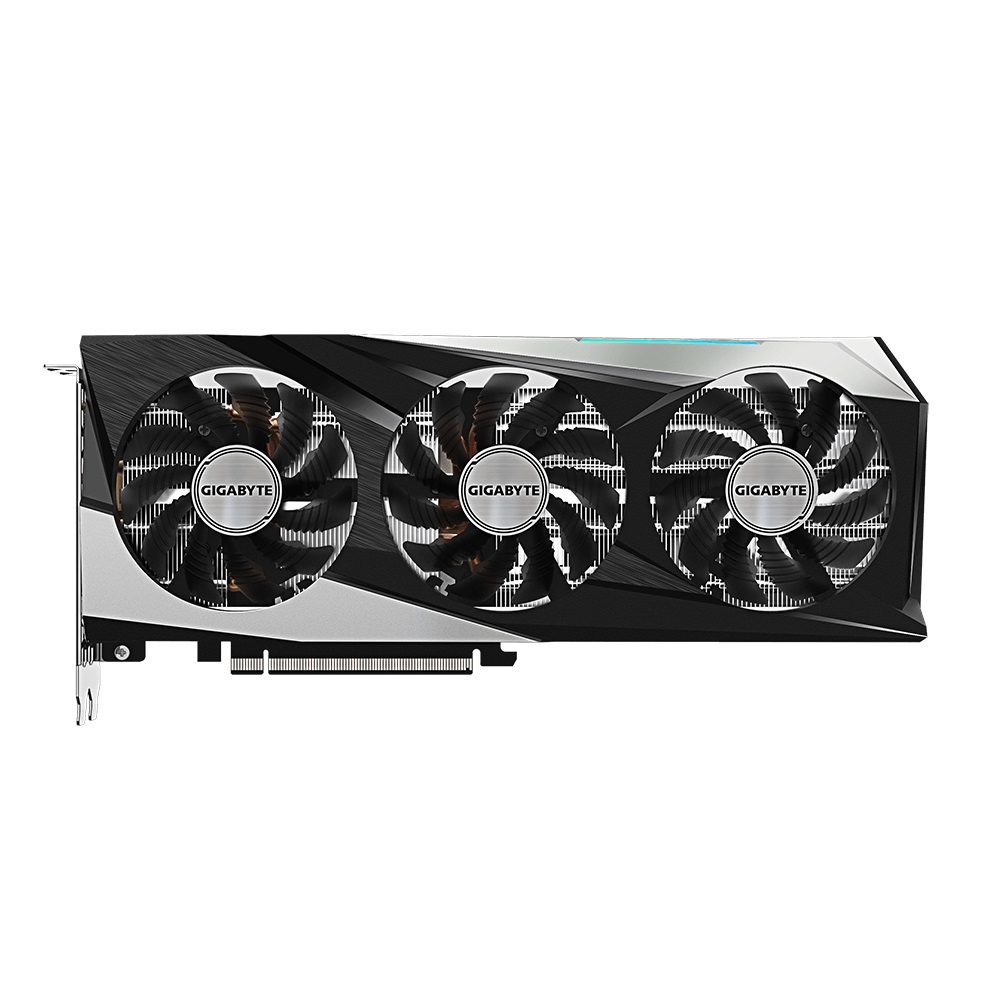

| Cooler | WINDFORCE 3X |
| Recommended PSU Wattage | 500W |
| Power Connector | 8-Pin |
| Features | Powered by AMD RDNA 2 Radeon RX 6600 XT Integrated with 8GB GDDR6 128-bit memory interface WINDFORCE 3X Cooling System with alternate spinning fans Screen cooling Graphene nano lubricant RGB Fusion 2.0 Protection metal back plate |
|---|
| Form Factor | ATX |
|---|---|
| Max GPU Length | 282 mm |
| Card Dimensions (L x H) | 11.10" x 4.53" |
| Slot Width | 2.5 Slot |
| Package Contents | Accessories: Quick guide |
|---|
