EVGA FUENTE 1600W GOLD 220-GP-1600-X1

EVGA FUENTE 1600W GOLD 220-GP-1600-X1

Cod. BFXEX116
USD 618,00
iva inc.
Ver descripción del producto
Marca:
EVGA
Imágenes meramente ilustrativas

Descripción del producto

General
BrandEVGA
SeriesSuperNOVA 1600 G+
Model220-GP-1600-X1
Details
TypeATX12V / EPS12V
Maximum Power 1600 W
Fans 1 x 135mm Fluid Dynamic Bearing Fan
PFC Active
Main Connector 20+4Pin
+12V Rails Single
PCI-Express Connector 14 x 6+2-Pin
SATA Power Connector 14
Haswell SupportYes
Modular Full Modular
Efficiency 90% or higher (under typical load)
Energy-Efficient80 PLUS GOLD Certified
ProtectionHeavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protections), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
Input Voltage115 - 240 V
Input Frequency Range50/60 Hz
Input Current17 - 9 A

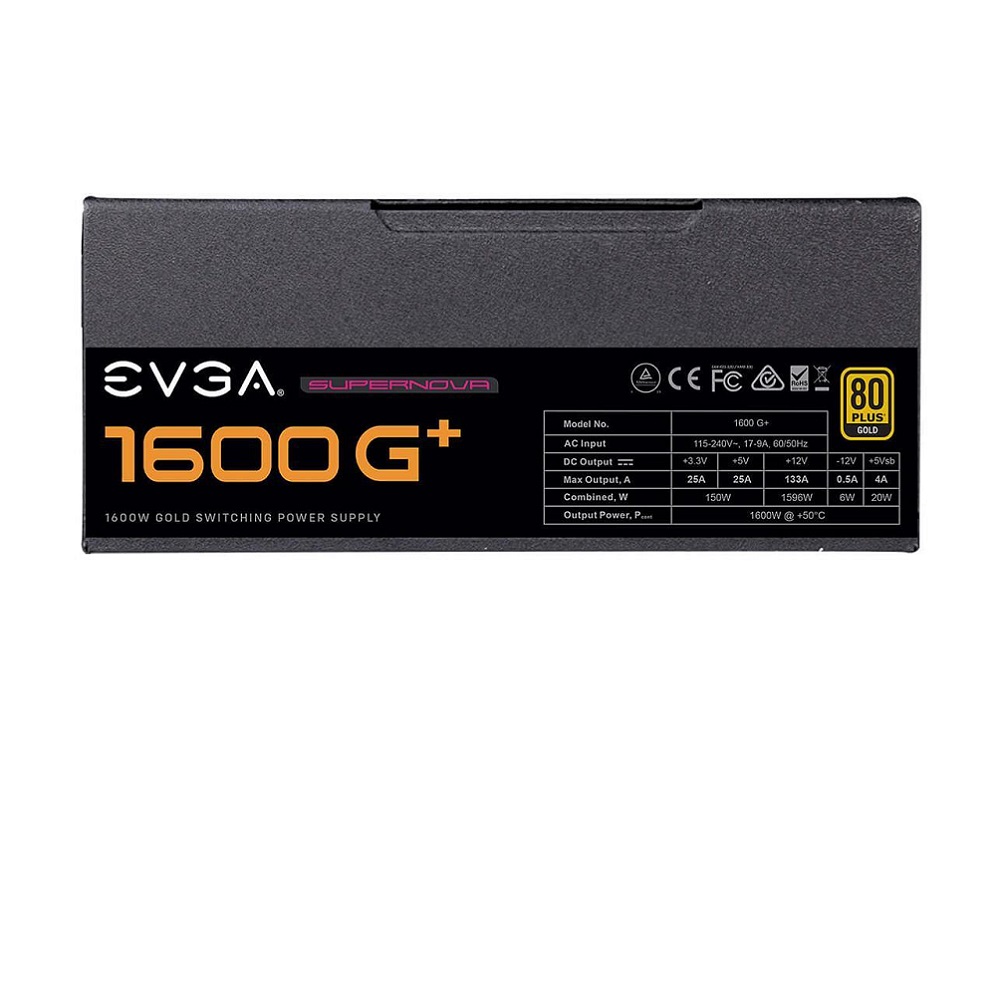

Output+3.3V@25A, +5V@25A, +12V@133A, -12V@0.5A, +5Vsb@4A
MTBF >100,000 Hours
ApprovalsTUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS, Compliance with ErP Lot 3 2014 Requirement
Max PSU Length200 mm

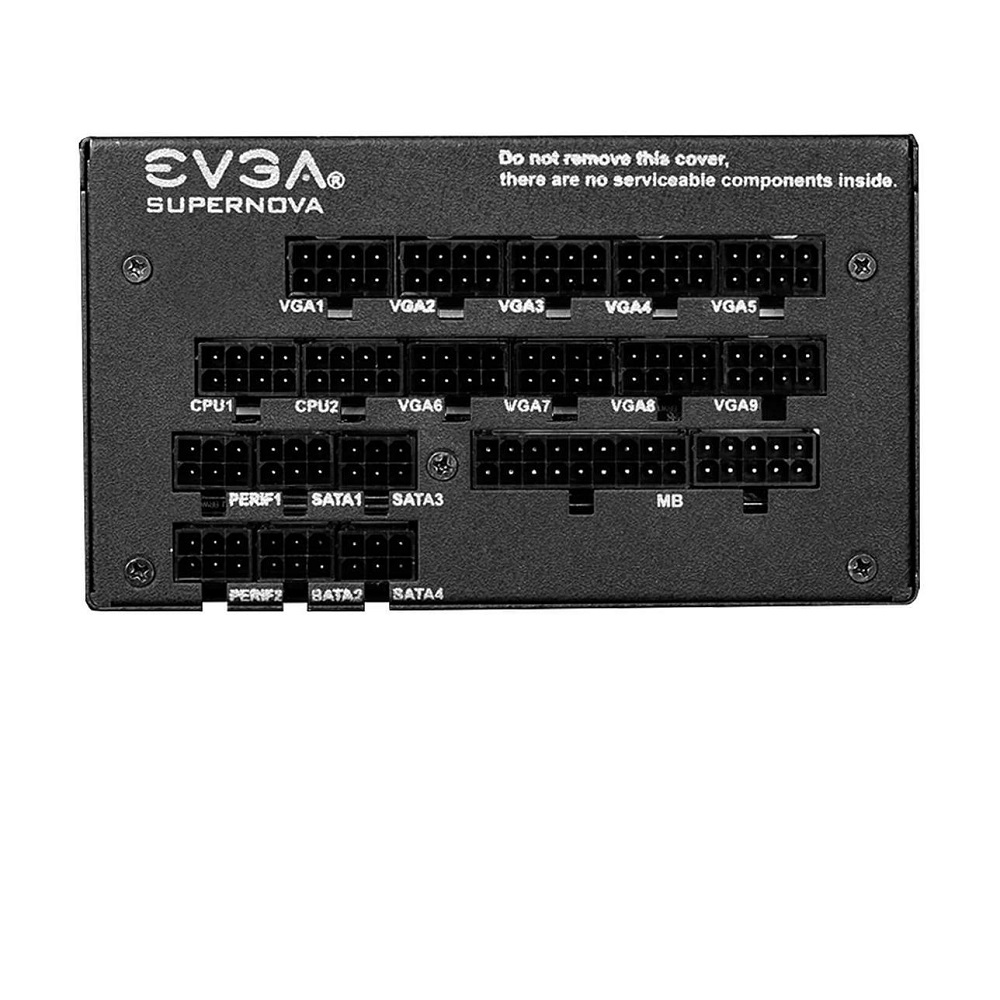

Connectors1 x 24 Pin ATX (20+4)
2 x 8 Pin EPS (4+4)
14 x 8 Pin PCIe (6+2)
14 x SATA
8 x Four-Pin Peripheral
1 x Floppy
Features
FeaturesThe SuperNOVA G+ is the new and improved fully-modular power supply line-up from EVGA with an 80+ Gold Efficiency rating. These power supplies pick up where the award-winning EVGA 1600 G2 and 1300 G2 power supplies left off and continue the tradition of EVGA quality and performance. Additionally, the SuperNOVA G+ power supplies feature a cleaner internal layout, a Variable Resistor module, two DC to DC modules for more efficient power switching, EVGA ECO Mode, a full suite of power supply protections, and EVGA’s World-Leading Global 10-Year Warranty on all G+ power supplies.

EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads

80 PLUS Gold certified, with 90% efficiency or higher under typical loads.

Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protections), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
Dimension & Weight
Dimensions3.39" x 5.91" x 7.87"
Weight4 lbs.
