HOME / COMPONENTES / MOTHERBOARDS / AMD

COD: BFXASP54

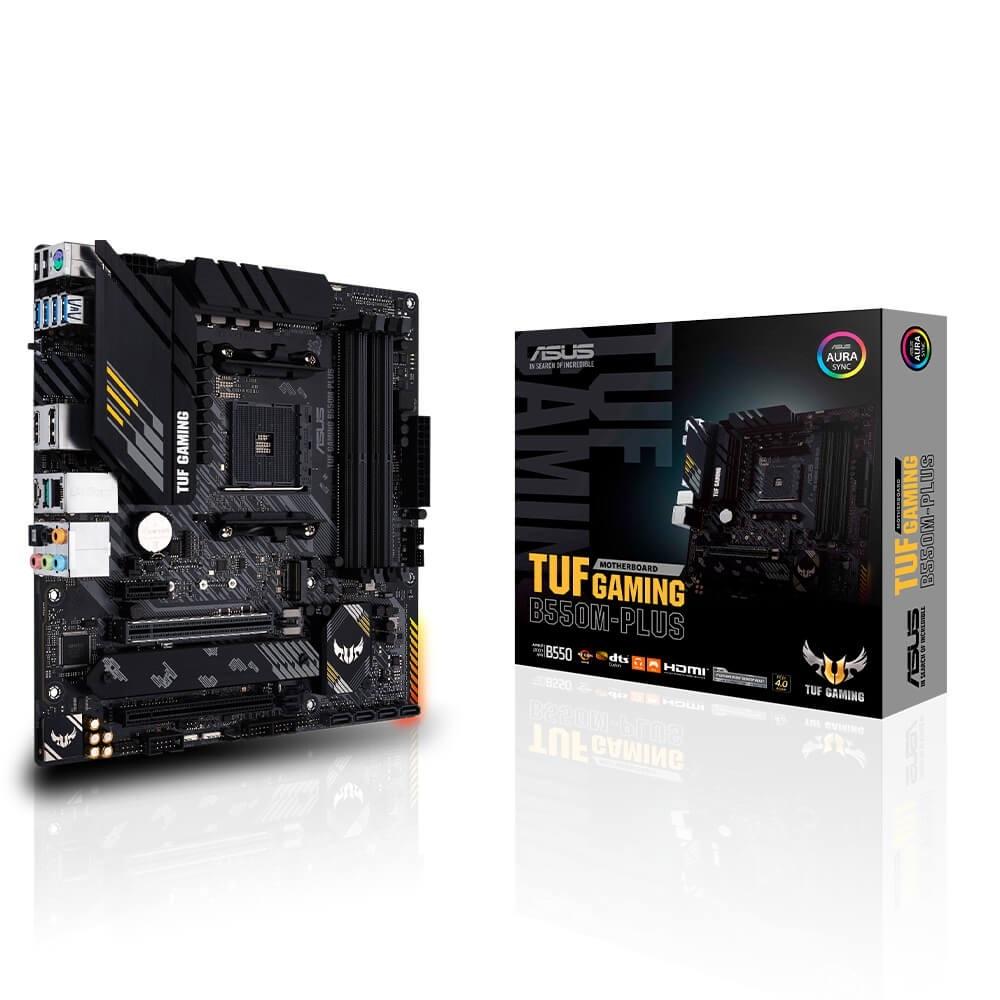

ASUS PLACA TUF GAMING B550M-PLUS

Descripción:

Model
Brand	ASUS
Model	TUF GAMING B550M-PLUS

Supported CPU
CPU Socket Type	AM4
CPU Type	BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list.

Chipsets
Chipset	AMD B550

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	3rd Gen AMD Ryzen Processors DDR4 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory * Next Generation AMD Ryzen PRO Processors DDR4 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory * * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 4.0 x16	3rd Gen AMD Ryzen Processors 1 x PCIe 4.0 x16 slot (supports x16 mode)
PCI Express 3.0 x16	AMD B550 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)
PCI Express x1	1 x PCIe 3.0 x1 slot * Support PCIe bifurcation for RAID on CPU function.

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	3rd Gen AMD Ryzen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) AMD B550 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic: 1 x DisplayPort 1.2 1 x HDMI 2.1 (4K@60HZ)

Onboard Audio
Audio Chipset	Realtek ALC S1200A High Definition Audio CODEC
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek RTL8125B
Max LAN Speed	10/100/1000/2500Mbps

Rear Panel Ports
Back I/O Ports	2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek RTL8125B 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Miscellaneous 1 x AURA Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header

Physical Spec
Form Factor	Micro ATX
LED Lighting	RGB
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector

Windows 11 Compatibility
Windows 11	Supported

PREVENTA

Arribo previsto para el día 26-06-2026.

USD 196,00
