| Brand | ASUS |
|---|---|
| Series | ROG |

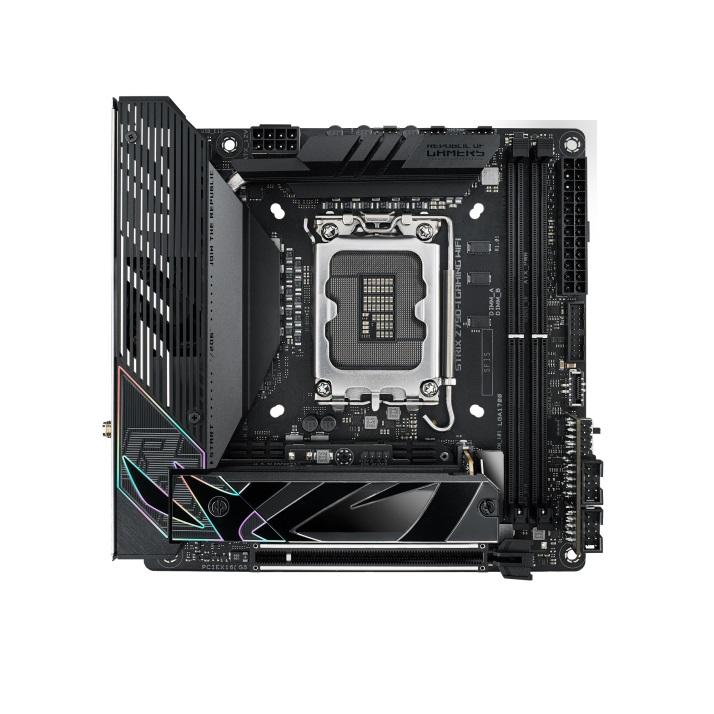

| Model | STRIX Z790-I GAMING WIFI |
| Part Number | 90MB1CM0-M0AAY0 |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Core i9 / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold |
| Chipset | Intel Z790 |
|---|
| PCI Express 5.0 x16 | Intel 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode) * Please check the PCIe bifurcation table on the ASUS support site. - To ensure compatibility of the device installed, please refer to ASUS support website for the list of supported peripherals. |
|---|
| Max LAN Speed | 1 x Intel 2.5Gb Ethernet ASUS LANGuard // TUF LANGuard |
|---|---|
| Wireless LAN | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* * WiFi 6E 6GHz regulatory may vary between countries. |
| Bluetooth | Bluetooth v5.3 |
| Back I/O Ports | 2 x Thunderbolt 4 USB Type-C port(s) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C ) 3 x USB 3.2 Gen 2 port(s) (3 x Type-A) (supports ROG STRIX HIVE) 1 x USB 3.2 Gen 1 port(s) (1 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 1 x Clear CMOS button |
|---|
| Onboard USB | 1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C ) 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports |
|---|---|
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x 4-pin Chassis Fan header(s) Storage related 2 x M.2 slots (Key M) Miscellaneous 1 x Addressable Gen 2 header(s) 1 x Aura RGB header(s) 1 x Thermal Sensor header 2 x USB Type-C connectors to Install ROG FPS-II card ROG FPS-II card 2 x SATA 6Gb/s ports 1 x CPU Over Voltage jumper 1 x Thermal Sensor header 1 x Front Panel header 1 x Alternative PCIe Mode switch 2 x USB 2.0 header(s) support(s) additional 3 USB 2.0 ports |
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector |
| Windows 11 | Supported |
|---|
