| Brand | ASUS |
|---|---|
| Series | ROG |
| Model | STRIX B550-I GAMING |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list. |
| Chipset | AMD B550 |
|---|
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 slot (supports x16) |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic 1 x DisplayPort 1.4* 1 x HDMI 2.1 (4K@60Hz)* * Graphics specifications may vary between CPU types. |
|---|
| LAN Chipset | Intel I225-V |
|---|---|
| Max LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN | Intel Wi-Fi 6 AX200 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4/5GHz transfer speed Supports channel bandwidth: HT20/HT40/HT80/HT160 |
| Bluetooth | Bluetooth v5.1 * Bluetooth 5.1 function will be ready in Windows 10 build 19041 or later. |

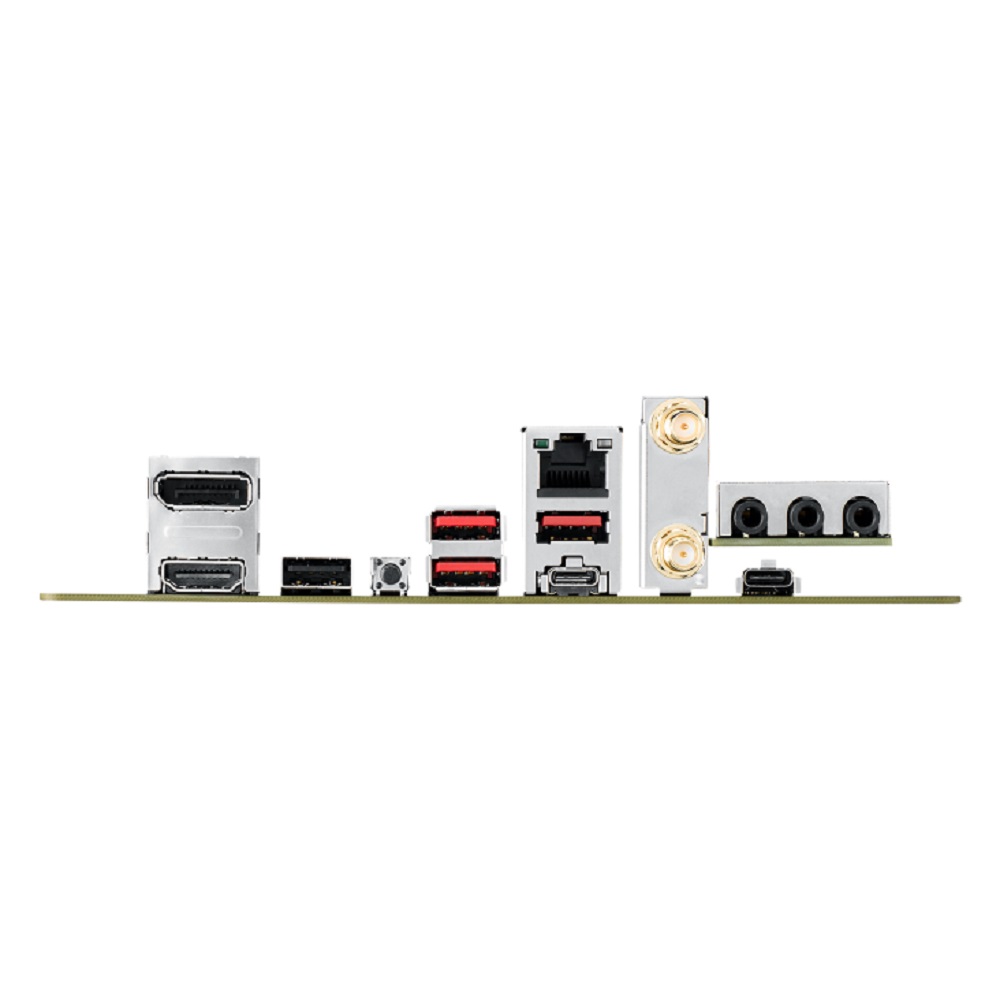

| Back I/O Ports | 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C) 1 x USB 2.0 port 1 x USB 2.0 port (1 x audio USB Type-C) 1 x DisplayPort 1 x HDMI port 1 x ASUS Wi-Fi Module 1 x BIOS FlashBack button 1 x Intel I225-V 2.5Gb Ethernet 3 x LED-illuminated audio jacks |
|---|
| Onboard USB | 1 x USB 3.2 Gen 2 Front panel connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
|---|---|
| Other Connectors | Fan and cooling related 1 x 4-Pin AIO_Pump header 1 x 4-Pin CPU Fan header 1 x 4-Pin Chassis Fan header 1 x VRM heatsink Fan header Miscellaneous 1 x AURA Addressable Gen 2 header 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
| Form Factor | Mini ITX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector |
| Windows 11 | Supported |
|---|
