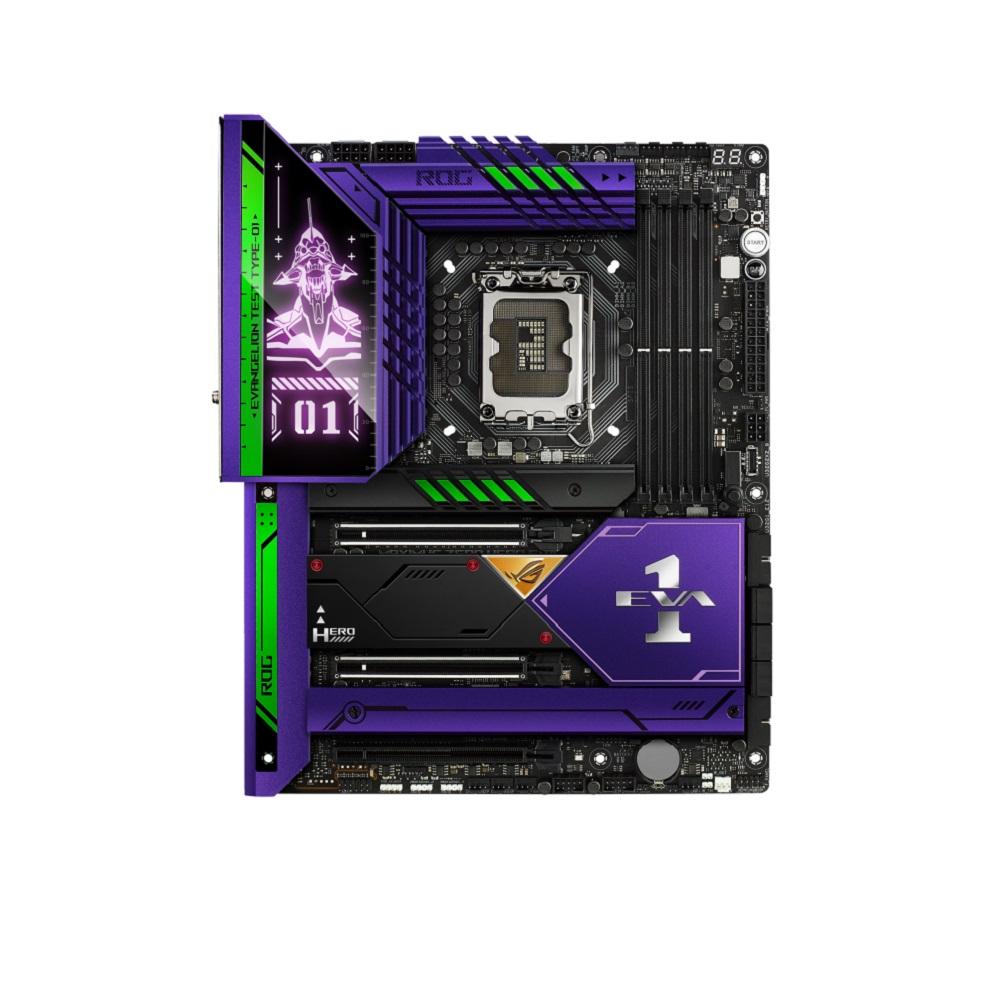

ASUS PLACA ROG MAXIMUS Z690 HERO EVA EDITION

ASUS PLACA ROG MAXIMUS Z690 HERO EVA EDITION

Cod. BFXZ69HE
USD 996,00
iva inc.
Ver descripción del producto
Marca:
ASUS
Imágenes meramente ilustrativas

Descripción del producto

Model
BrandASUS
SeriesROG
ModelMAXIMUS Z690 HERO EVA
Part Number90MB1BX0-M0AAY0
Supported CPU
CPU Socket Type LGA 1700
CPU TypeSupports 12th Gen Intel Core / Pentium Gold / Celeron Processors
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*

* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset Intel Z690
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800
Maximum Memory Supported128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 5.0 x162 x PCI Express 5.0 x16

* Actual support may vary by CPU.
* When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, PCIEX16(G5)_2 will run x8 only and if ROG Hyper M.2 card is installed on PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only.
PCI Express 4.0 x161 x PCI Express 4.0 x16

* Supports x4, x4/x4 modes.
* Supports Intel Optane Memory H Series on PCH-attached PCIe slot.
Storage Devices
SATA 6Gb/s 6 x SATA 6Gb/s

* RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports.
M.2Intel 12th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode.)
- Intel 12th Gen processors support PCIe 4.0 x4 mode.
Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110***
- Intel 12th Gen processors support PCIe 5.0 x4 mode.

Intel Z690 Chipset:**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)***
Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)****

** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
*** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, Hyper M.2_1 slot can support PCIe 4.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G5)_2, Hyper M.2_1 slot can support PCIe 5.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G4), Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode.
**** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1 or PCIEX16(G5)_2, Hyper M.2_2 slot will be disabled. When ROG Hyper M.2 card is installed on PCIEX16(G4), Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode.
Intel Optane ReadyYes
SATA RAID0/1/5/10
Onboard Audio
Audio Chipset ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Audio Channels 7.1 Channels
Onboard LAN
Max LAN Speed10/100/1000/2500Mbps
Wireless LANWi-Fi 6E
802.11 a/b/g/n/ac/ax
BluetoothBluetooth 5.2

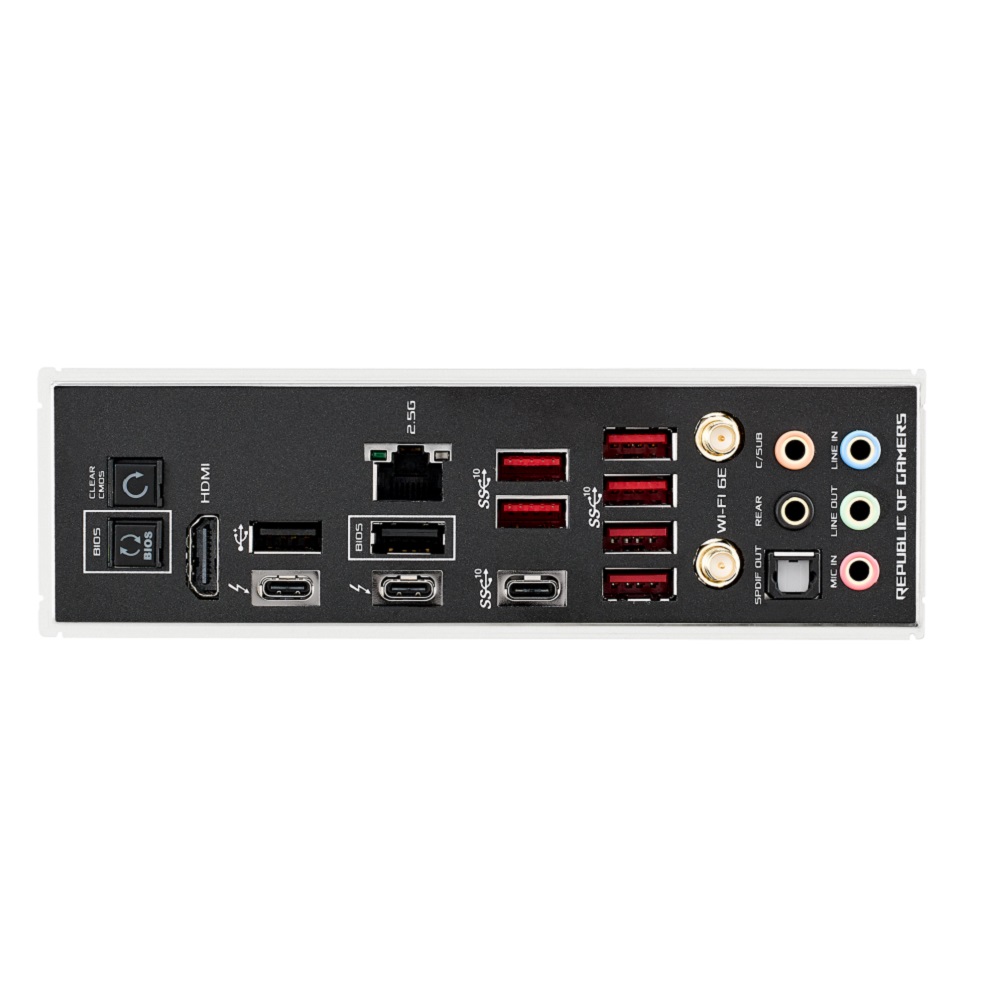

Rear Panel Ports
Back I/O Ports2 x Thunderbolt 4 USB Type-C ports
7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O Connectors
Onboard USB1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x Start button
1 x ReTry button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Windows Compatibility
Windows 11Ready
