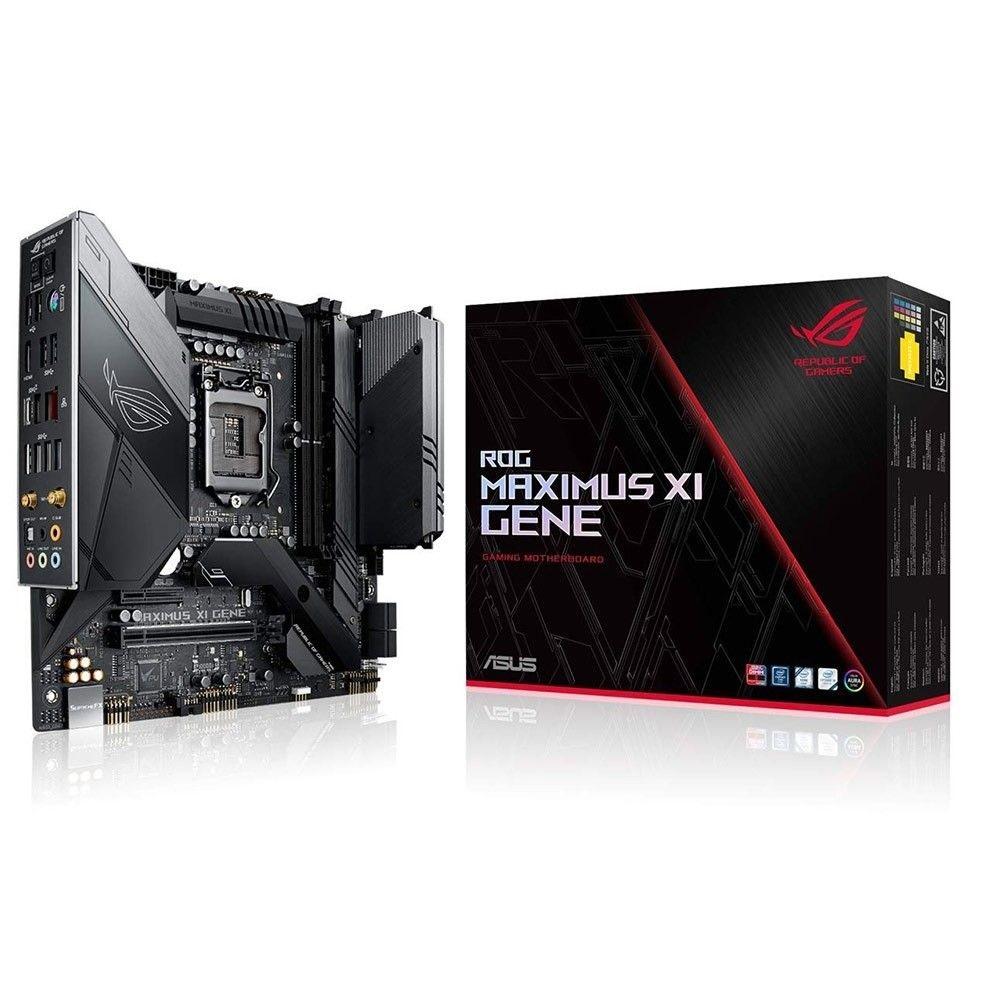

ASUS PLACA ROG MAXIMUS XI GENE (Z390)

ASUS PLACA ROG MAXIMUS XI GENE (Z390)

Cod. BFXASP37
USD 610,00
iva inc.
Ver descripción del producto
Marca:
ASUS
Imágenes meramente ilustrativas

Descripción del producto

BrandASUS
SeriesROG
ModelMAXIMUS XI GENE
Supported CPU
CPU Socket Type LGA 1151 (300 Series)
CPU TypeBuild in Intel 9th/8th Gen Intel Core, Pentium Gold and Celeron Processors
* Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU TechnologiesTurbo Boost Technology 2.0
Chipsets
Chipset Intel Z390
Onboard Video
Onboard Video Chipset Integrated Graphics Processor - Intel UHD Graphics support
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz
Memory
Number of Memory Slots2×288pin
Memory StandardDDR4 4800(O.C.)/ 4700(O.C)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory *
* Double Capcity DRAM support depends on the DRAM models
Maximum Memory Supported64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16Socket 1151 for 9th/8th Gen Intel Core, Pentium Gold and Celeron processors
1 x PCIe 3.0 x16
PCI Express x4Intel Z390 Chipset
1 x PCIe 3.0 x4
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
M.2Socket 1151 for 9th/8th Gen Intel Core, Pentium Gold and Celeron processors:
2 x ROG DIMM.2 Module support (CPU_DIMM.2), with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)
Intel Z390 Chipset:
2 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)
Intel Optane ReadyYes
SATA RAID0/1/5/10
Onboard Audio
Audio Chipset ROG SupremeFX High Definition Audio CODEC S1220A
Audio Channels 8 Channels
Onboard LAN
LAN ChipsetIntel I219-V
Max LAN Speed10/100/1000Mbps
Wireless LANIntel Wireless-AC 9560
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
BluetoothBluetooth 5.0

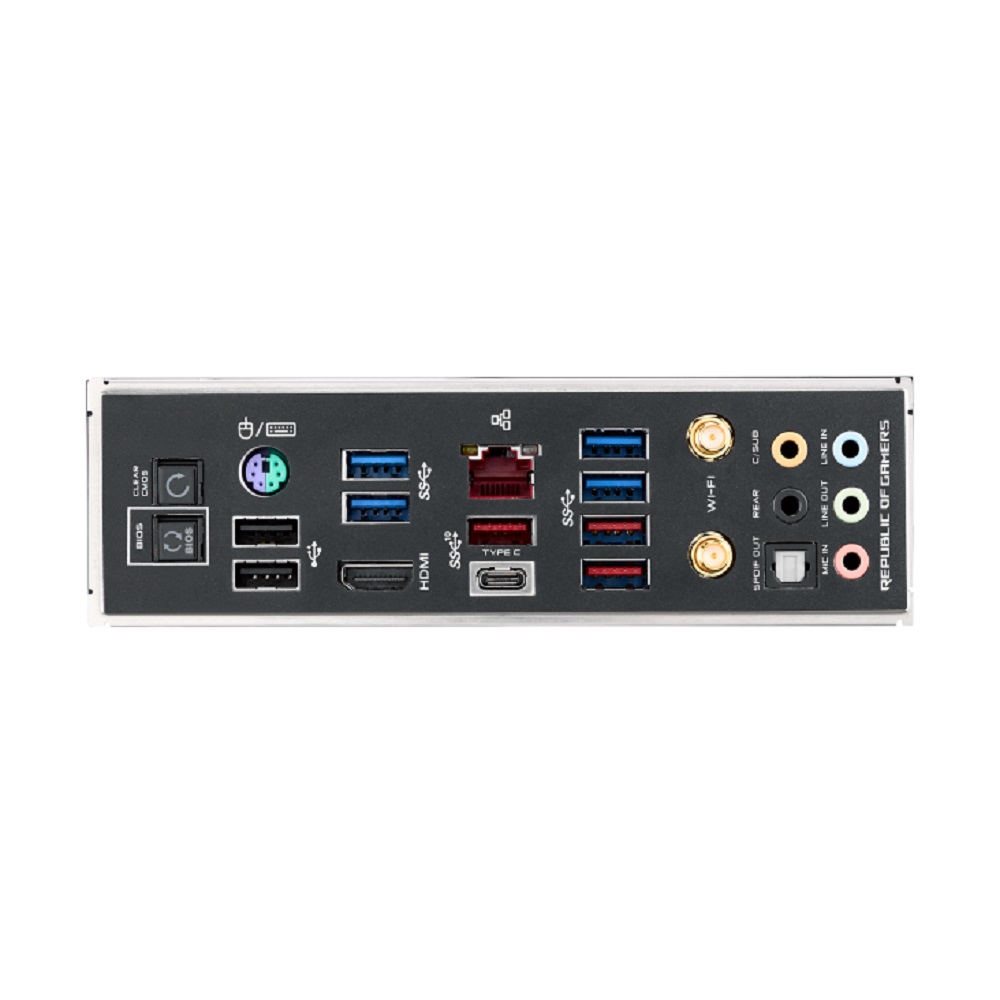

Rear Panel Ports
Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)
1 x HDMI
1 x LAN (RJ45) port(s)
3 x USB 3.1 Gen 2 (red) Type-A
1 x USB 3.1 Gen 2 (red) Type-C
6 x USB 3.1 Gen 1 (blue)
2 x USB 2.0
1 x Clear CMOS button(s)
1 x Wi-Fi antenna port(s)
Physical Spec
Form FactorMicro ATX
Dimensions (W x L)9.6" x 8.9"
