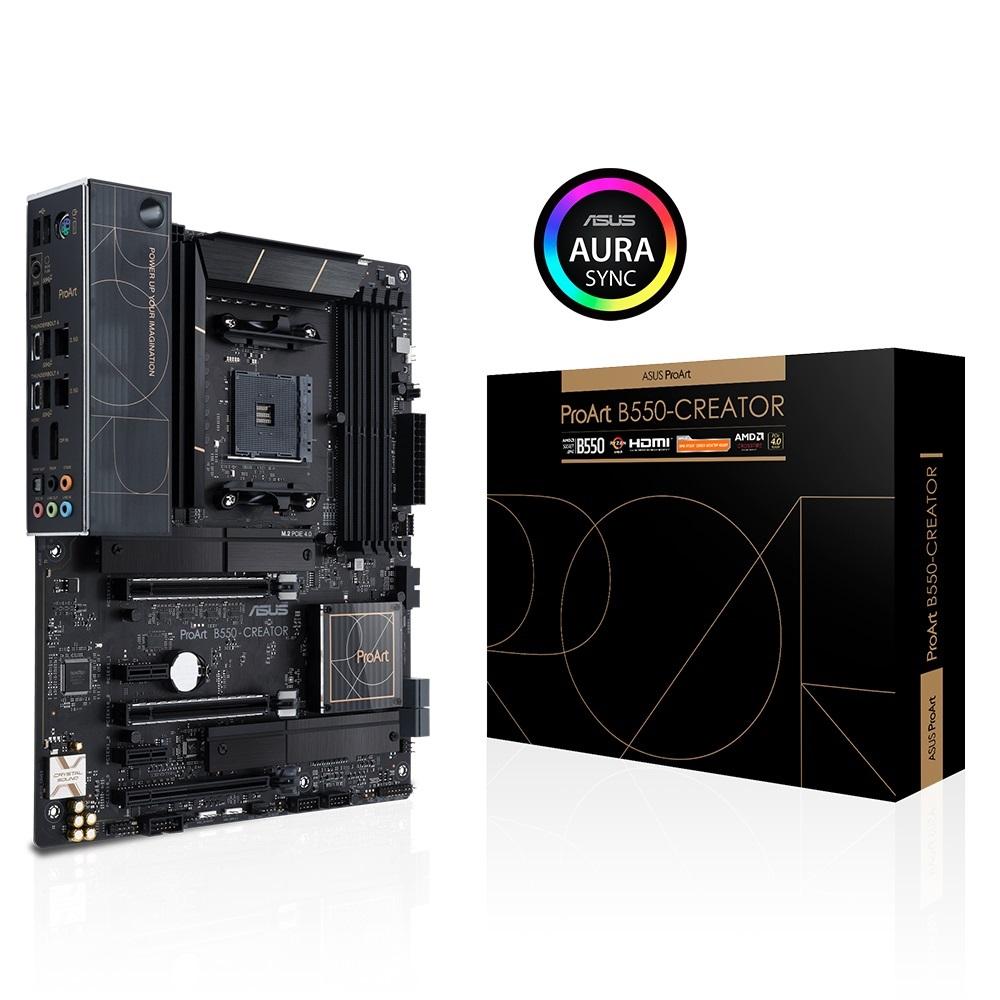

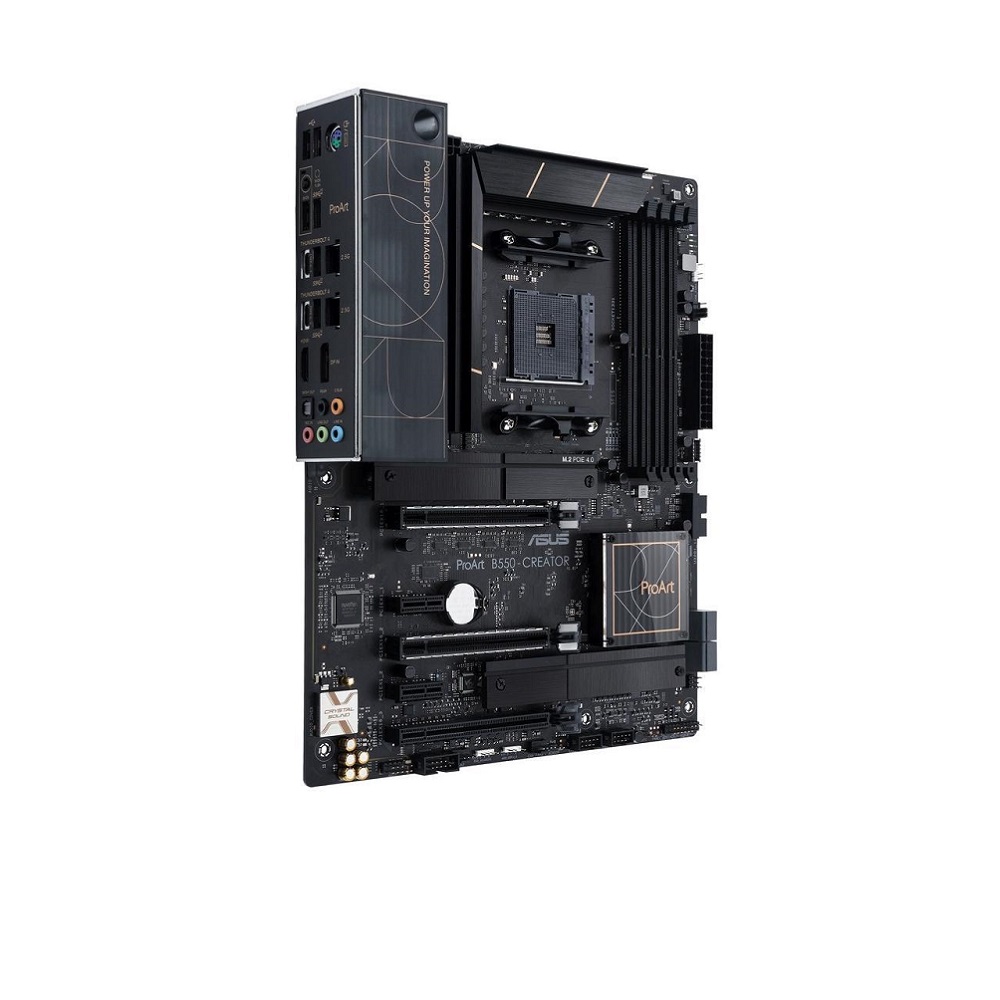

ASUS PLACA PROART B550-CREATOR

ASUS PLACA PROART B550-CREATOR

Cod. BFXB5PR
USD 469,00
iva inc.
Ver descripción del producto
Marca:
ASUS
Imágenes meramente ilustrativas

Descripción del producto

Best Seller Ranking#95 in AMD Motherboards
Model
BrandASUS
ModelProArt B550-CREATOR
Supported CPU
CPU Socket Type AM4
CPU TypeSupports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series Processors*

* Refer to www.asus.com for CPU support list.
Chipsets
Chipset AMD B550
Memory
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 5100(OC) / 4866(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 4000 G-Series Processors)

DDR4 4866(OC) / 4600(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 * (AMD Ryzen 5000 Series / 3000 Series Desktop Processors)

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported128GB
Channel Supported Dual Channel
ECC SupportedECC Memory (ECC mode) support varies by CPU.
Buffer SupportedUn-buffered
Expansion Slots
PCI Express 4.0 x162 x PCI Express 4.0 x16*

* Actual support may vary by CPU.
PCI Express 3.0 x16 1 x PCI Express 3.0 x16*

* Running at x4 mode.
* PCIe 3.0 x4 will be switched from Thunderbolt 4 to PCIEX16_3 if the slot is populated; by then Thunderbolt 3 will have no output.
PCI Express x16None
PCI Express x12 x PCIe 3.0 x1*

* These PCIe x1 slots share bandwidth with M.2_2, which runs at PCIe 3.0 x4 by default. You may go to BIOS setting to set M.2_2 to PCIe 3.0 x4 or x2 at will.
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
M.2AMD Ryzen 5000 Series / 3000 Series Desktop Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

AMD Ryzen 4000 G-Series Processor:
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

AMD B550 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
SATA RAID0/1/10
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Onboard Audio
Audio Chipset Realtek S1220A
Audio Channels 7.1 Channels*

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Onboard LAN
LAN Chipset2 x Intel I225-V
Max LAN SpeedDual 10/100/1000/2500Mbps

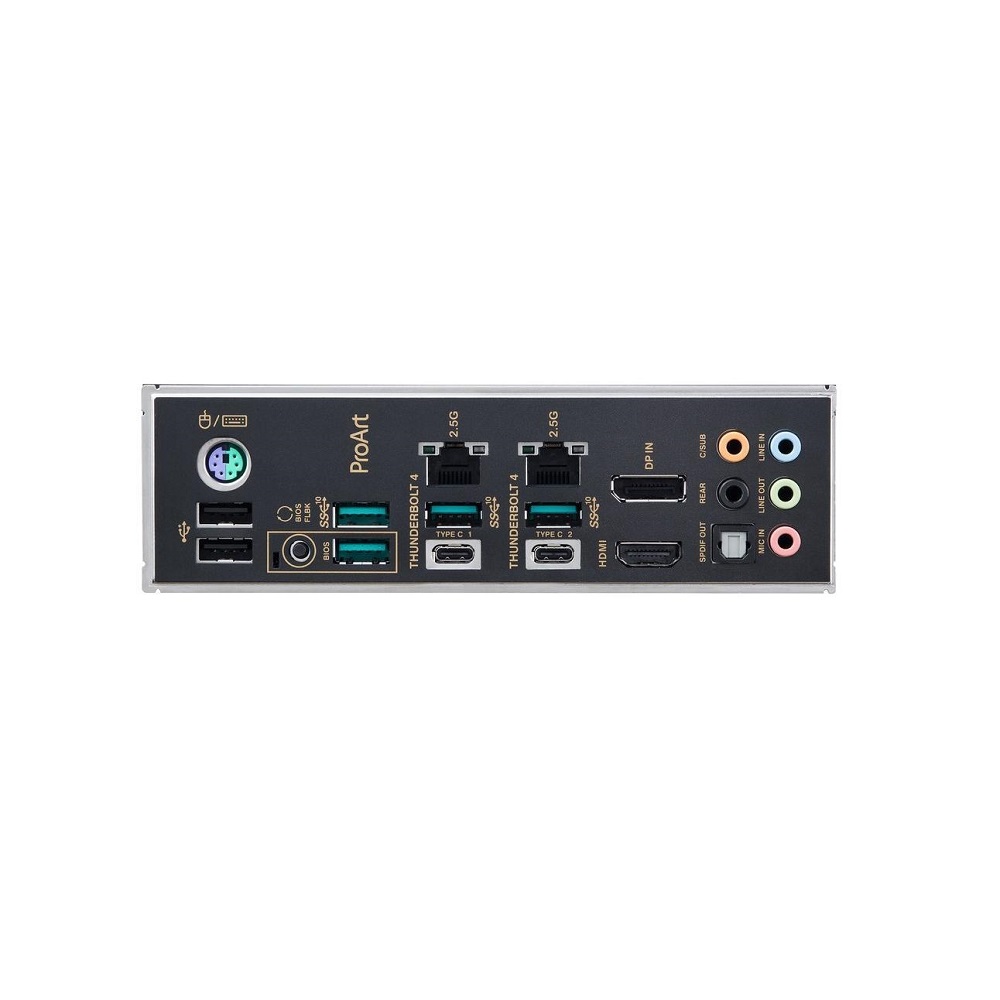

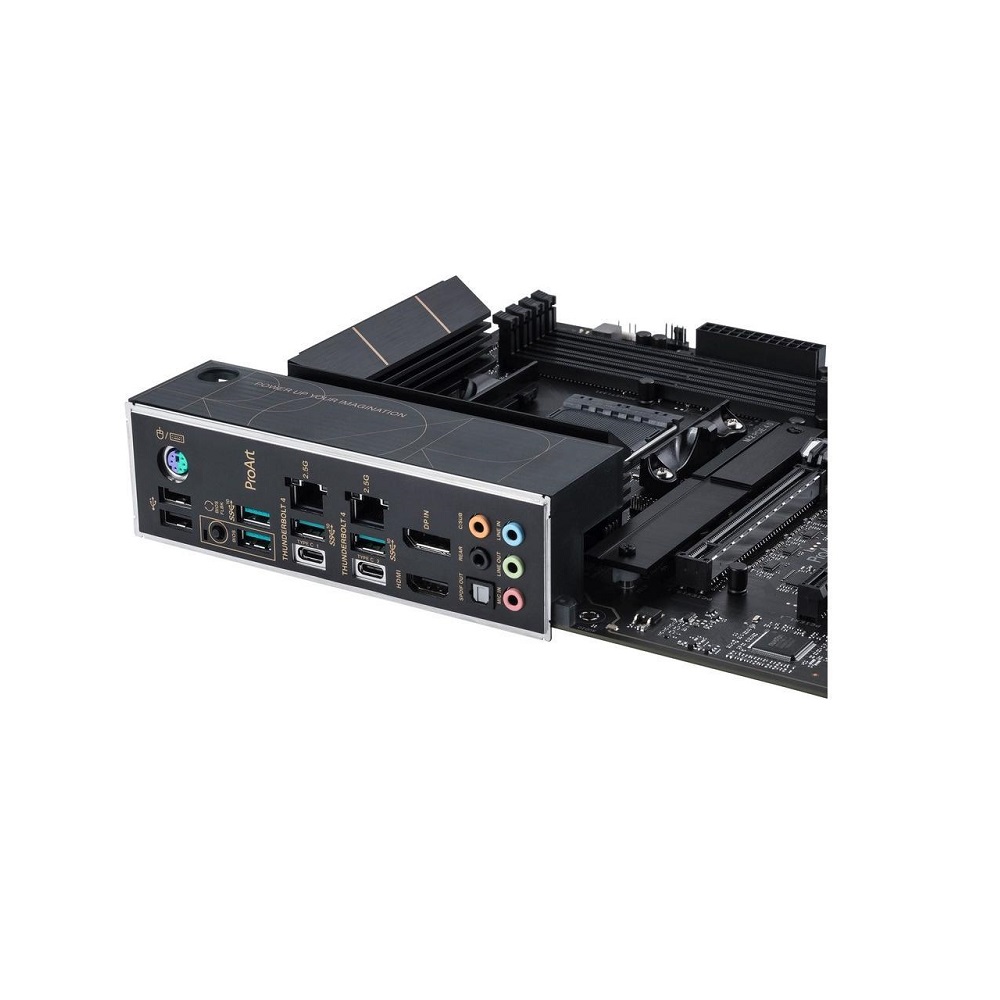

Rear Panel Ports
Back I/O Ports2 x Thunderbolt 4 USB Type-C port(s)
4 x USB 3.2 Gen 2 port(s) (4 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI port
2 x Intel I225-V 2.5Gb Ethernet ports
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x PS/2 Keyboard/Mouse combo port
HDMI 1 x HDMI
USB 3.0 2 x USB 3.0
Internal I/O Connectors
Onboard USB1 x USB 3.2 Gen 1 connector (support(s) USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
4 x 4-pin Chassis Fan header(s)
Miscellaneous
2 x AURA Addressable Gen 2 header(s)
2 x AURA RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 20-5 pin System Panel header
1 x Thermal Sensor header
