| Brand | ASUS |
|---|---|
| Series | Prime |

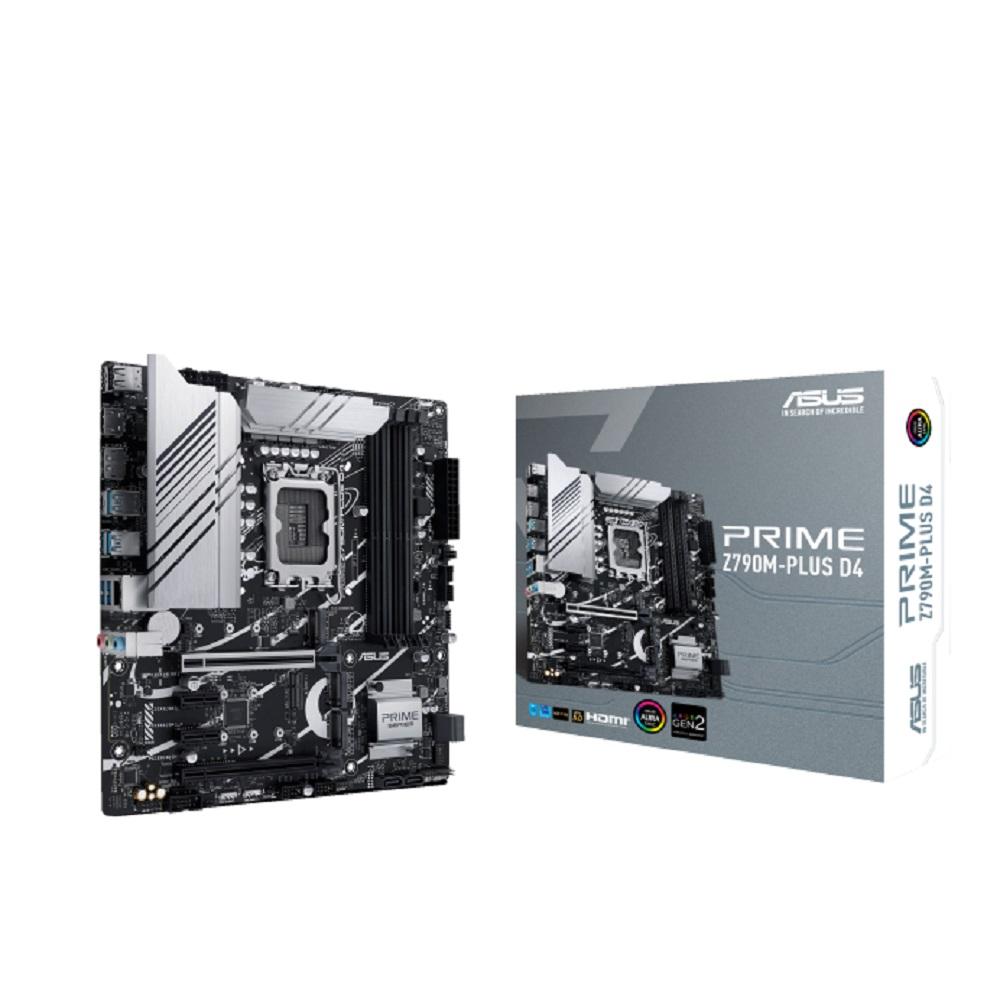

| Model | Z790M-PLUS D4 |
| Part Number | 90MB1D20-M0AAY0 |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors* * Refer to www.asus.com for CPU support list. |
| Chipset | Intel Z790 |
|---|
| PCI Express 5.0 x16 | Intel 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot * Please check the PCIe bifurcation table on the ASUS support site |
|---|---|
| PCI Express 4.0 x16 | Intel Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| PCI Express x1 | 2 x PCIe 4.0 x1 slots Note: To ensure compatibility of the device installed, please refer to ASUS support website for the list of supported peripherals. |
| Max LAN Speed | 1 x Intel 1Gb Ethernet ASUS LANGuard |
|---|---|
| Wireless LAN | M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. |
| Back I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Intel 1Gb Ethernet port 3 x Audio jacks |
|---|
