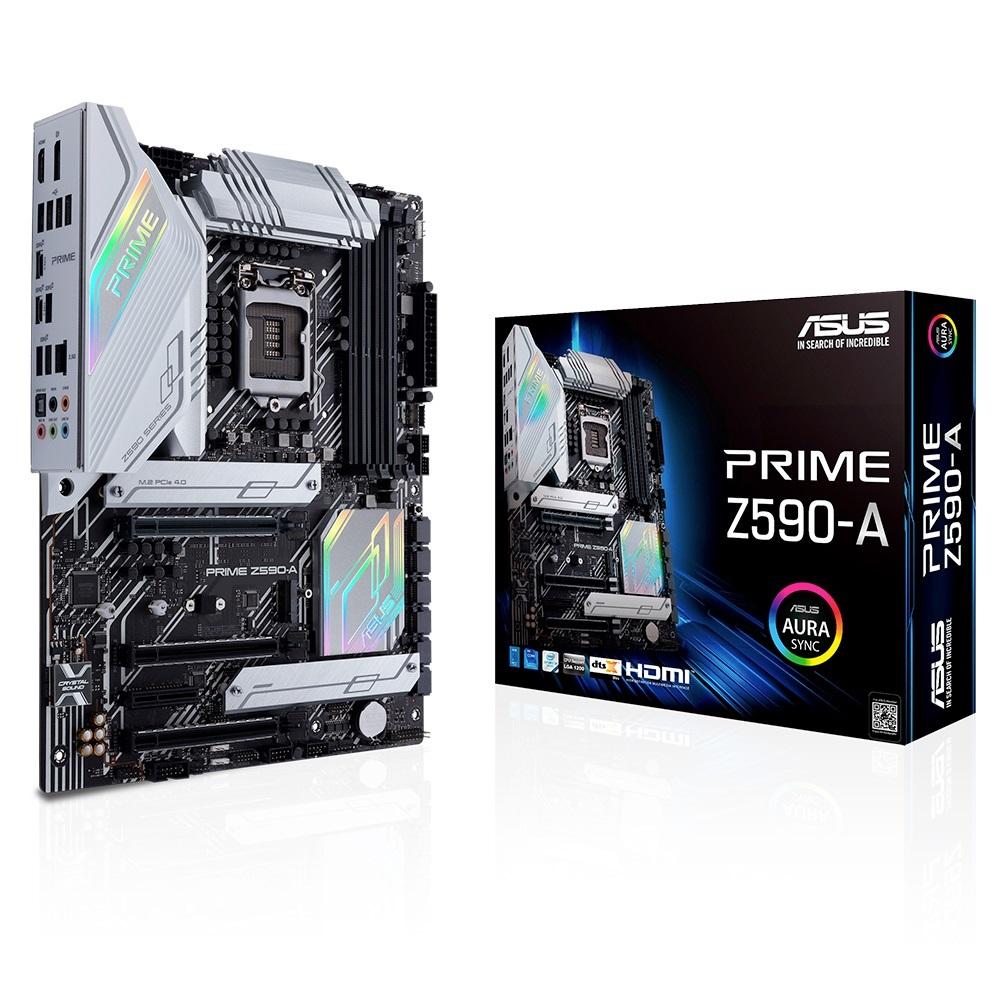

ASUS PLACA PRIME Z590-A (GEN11)

ASUS PLACA PRIME Z590-A (GEN11)

Cod. BFXASP89
USD 418,00
iva inc.
Ver descripción del producto
Marca:
ASUS
Imágenes meramente ilustrativas

Descripción del producto

BrandASUS
ModelPRIME Z590-A
Supported CPU
CPU Socket Type LGA 1200
CPU TypeSupports 11th / 10th Gen Intel Core Processors
Supports Intel Pentium Gold / Celeron Processors

* Refer to www.asus.com for CPU support list.
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*

* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset Intel Z590
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots4×288pin
Memory StandardDDR4 5333(OC) / 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*

* 11th Gen Intel Core processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively.
* 10th Gen Intel Core i9 / i7 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Maximum Memory Supported128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 4.0 x163 x PCI Express 4.0 x16*

* Actual support may vary by CPU.
PCI Express x41 x PCI Express 3.0 x4
Storage Devices
SATA 6Gb/s 6 x SATA 6Gb/s
M.2Intel 11th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel Z590 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
M.2_3 slot (Key M), type 2242/2260/22110 (supports PCIe 3.0 x4 & SATA modes)**

* M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.
** M.2_3 shares bandwidth with SATA6G_6. When M.2_6 runs SATA mode, SATA6G_6 will be disabled.
Intel Optane ReadyTo enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.
Onboard Audio
Audio Chipset Realtek S1220A
Audio Channels 7.1 Channels
Onboard LAN
LAN ChipsetIntel I225-V
Max LAN Speed10/100/1000/2500Mbps
Rear Panel Ports
Back I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x Type-C)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Intel I225-V 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Internal I/O Connectors
Onboard USB1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
1 x 4-pin VRM_HS Fan header
1 x W_PUMP+ header
Miscellaneous
3 x AURA Addressable Gen 2 headers
1 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x CPU Over Voltage jumper
1 x Power button
1 x SPI TPM header (14-1-pin)
1 x 20-3-pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
Physical Spec
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Windows Compatibility
Windows 11Supported
