ASUS PLACA PRIME H770-PLUS D4
Inicio / COMPONENTES / MOTHERBOARD / INTEL

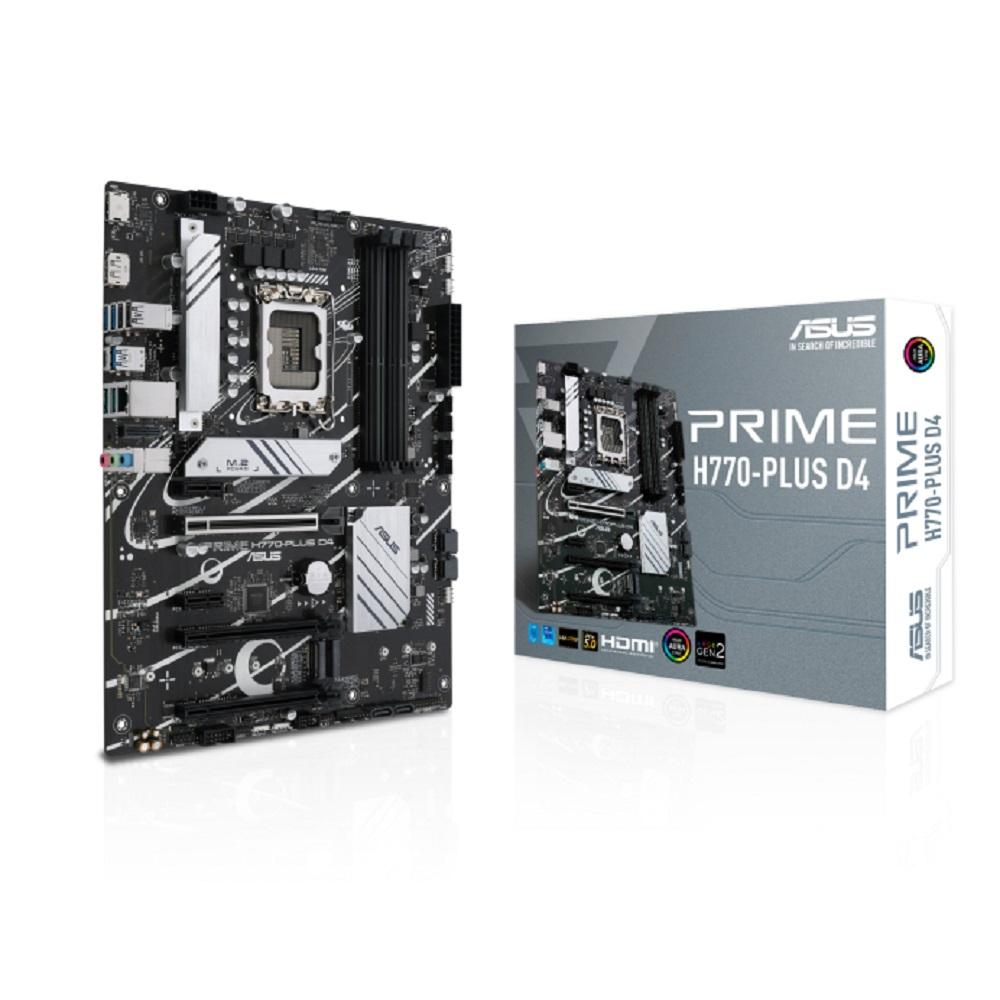

ASUS PLACA PRIME H770-PLUS D4

Cod. BFXH7P
USD 240,00
iva inc.
Ver descripción del producto
Marca:
ASUS
¡De momento no contamos con este artículo! Comunicate con nosotros y te informaremos su próximo ingreso.
Imágenes meramente ilustrativas
Consultar por este producto
Leer Nuestra Política de Entregas y Devoluciones
Descripción del producto

Model
BrandASUS
ModelPRIME H770-PLUS D4
Part Number90MB1CU0-M0AAY0
Supported CPU
CPU Socket Type LGA 1700
CPU TypeCeleron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
Chipsets
Chipset Intel H770
Memory
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 3200
Maximum Memory Supported128GB
Channel Supported Dual Channel
Memory FeatureDDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Expansion Slots
PCI Express 5.0 x16Intel 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16Intel H770 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
PCI Express x1Intel H770 Chipset
2 x PCIe 3.0 x1 slots
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
M.2Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel H770 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
SATA RAIDIntel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Onboard Audio
Audio Chipset Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels 7.1 Channels
Onboard LAN
Max LAN Speed1 x Realtek 2.5Gb Ethernet
Wireless LANVertical M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately.
Rear Panel Ports
Back I/O Ports2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
2 x DisplayPorts
1 x HDMI® port
1 x VGA port
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port
Windows Compatibility
Windows 11Supported
