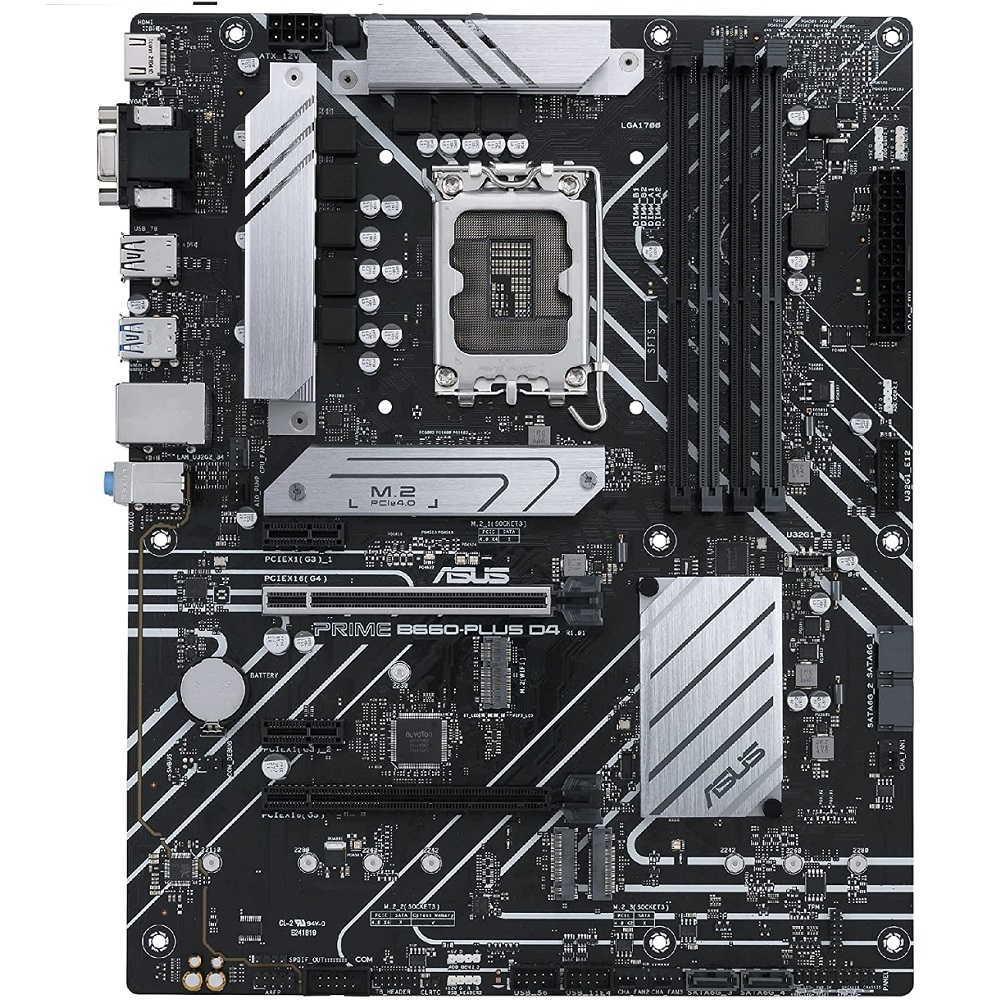

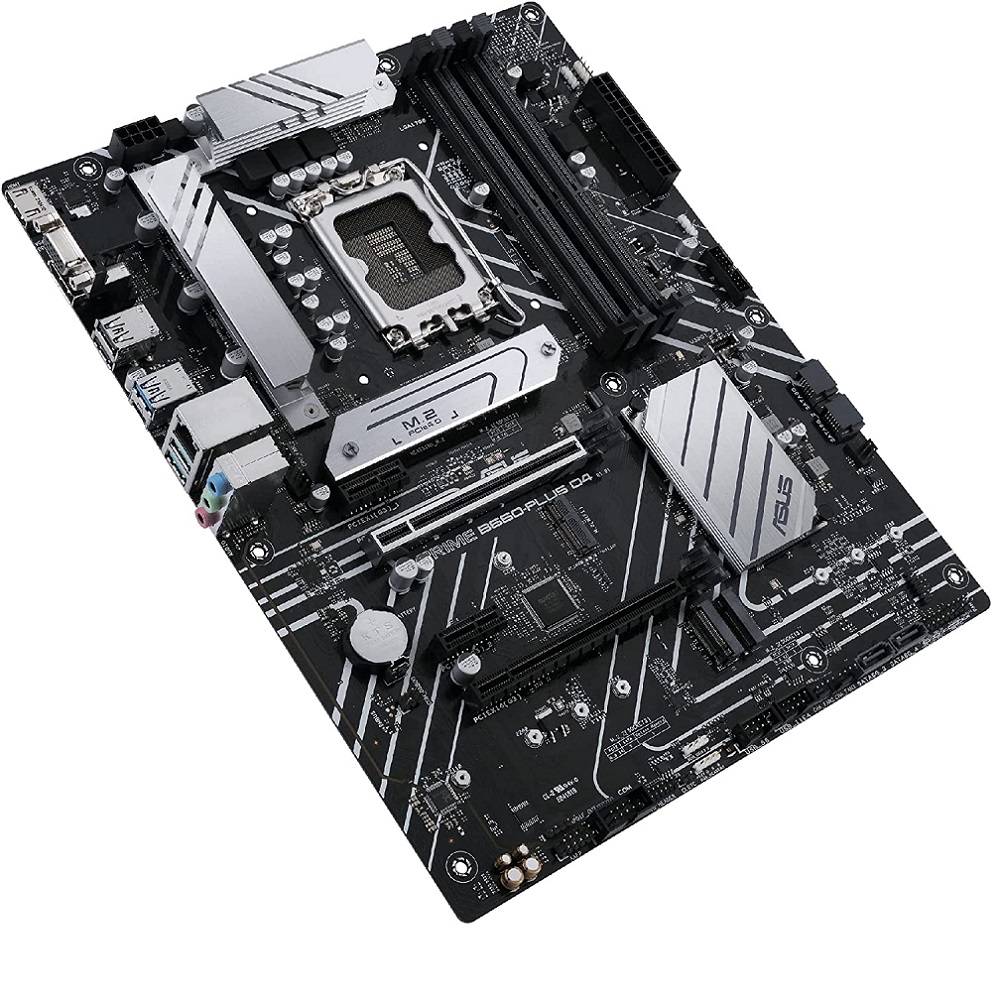

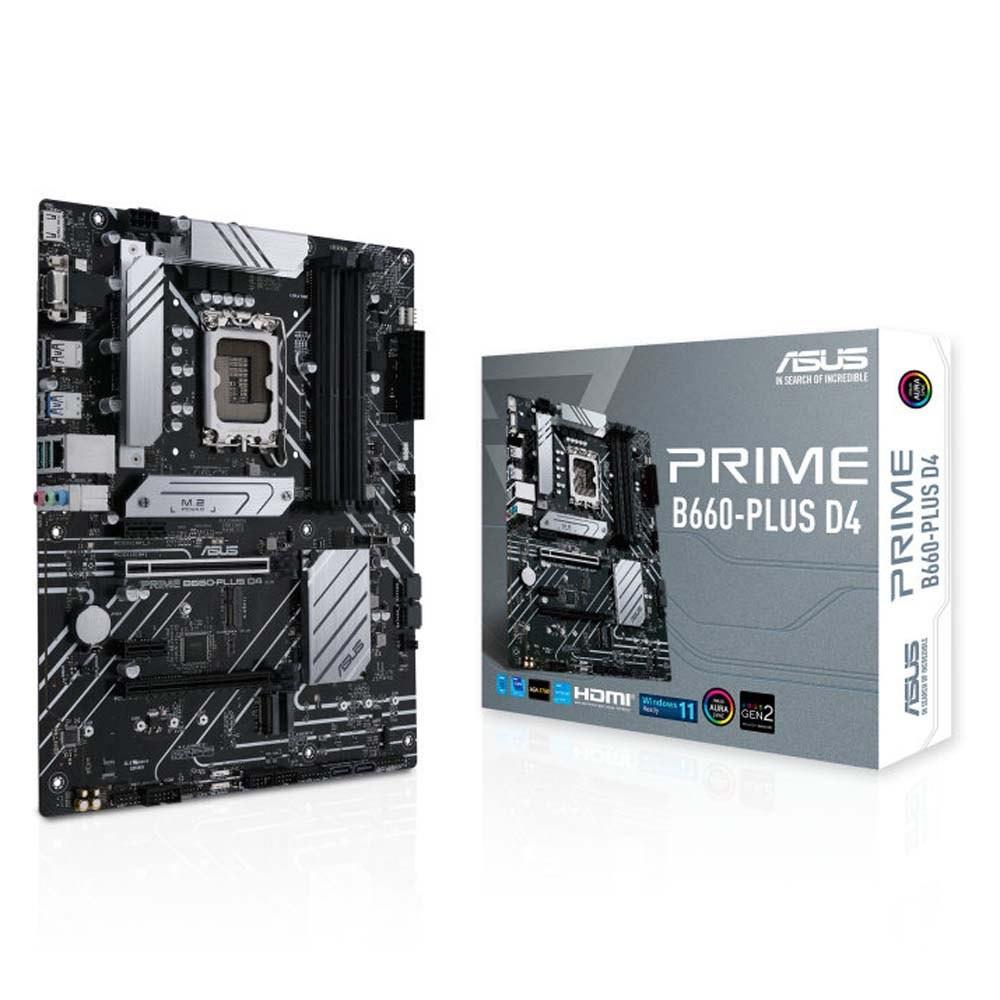

ASUS PLACA PRIME B660-PLUS D4 DDR4

ASUS PLACA PRIME B660-PLUS D4 DDR4

Cod. BFXB6
USD 232,00
iva inc.
Ver descripción del producto
Marca:
ASUS
¡De momento no contamos con este artículo! Comunicate con nosotros y te informaremos su próximo ingreso.
Imágenes meramente ilustrativas

Descripción del producto

Model
BrandASUS
ModelPRIME B660-PLUS D4
Supported CPU
CPU Socket Type LGA 1700

* Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets.
CPU TypeSupports 12th Gen Intel Core / Pentium Gold / Celeron Processors

* Refer to www.asus.com for CPU support list.
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*

* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset Intel B660
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*

*Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 4.0 x161 x PCI Express 4.0 x16

* Actual support may vary by CPU.
PCI Express 3.0 x161 x PCI Express 3.0 x16

* Supports x4 mode.
PCI Express x12 x PCIe 3.0 x1
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
M.2Intel 12th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280
- Intel 12th Gen processors support PCIe 4.0 x4 mode.

Intel B660 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)*
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)

* Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Intel Optane ReadyYes
SATA RAID0/1/5/10
Onboard Audio
Audio Chipset Realtek 7.1 Surround Sound High Definition Audio CODEC*

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels 7.1 Channels
Onboard LAN
LAN ChipsetRealtek 2.5Gb Ethernet
Max LAN Speed10/100/1000/2500Mbps
Rear Panel Ports
Back I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x D-Sub port
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
Internal I/O Connectors
Onboard USB1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt header
Physical Spec
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Windows Compatibility
Windows 11Supported
