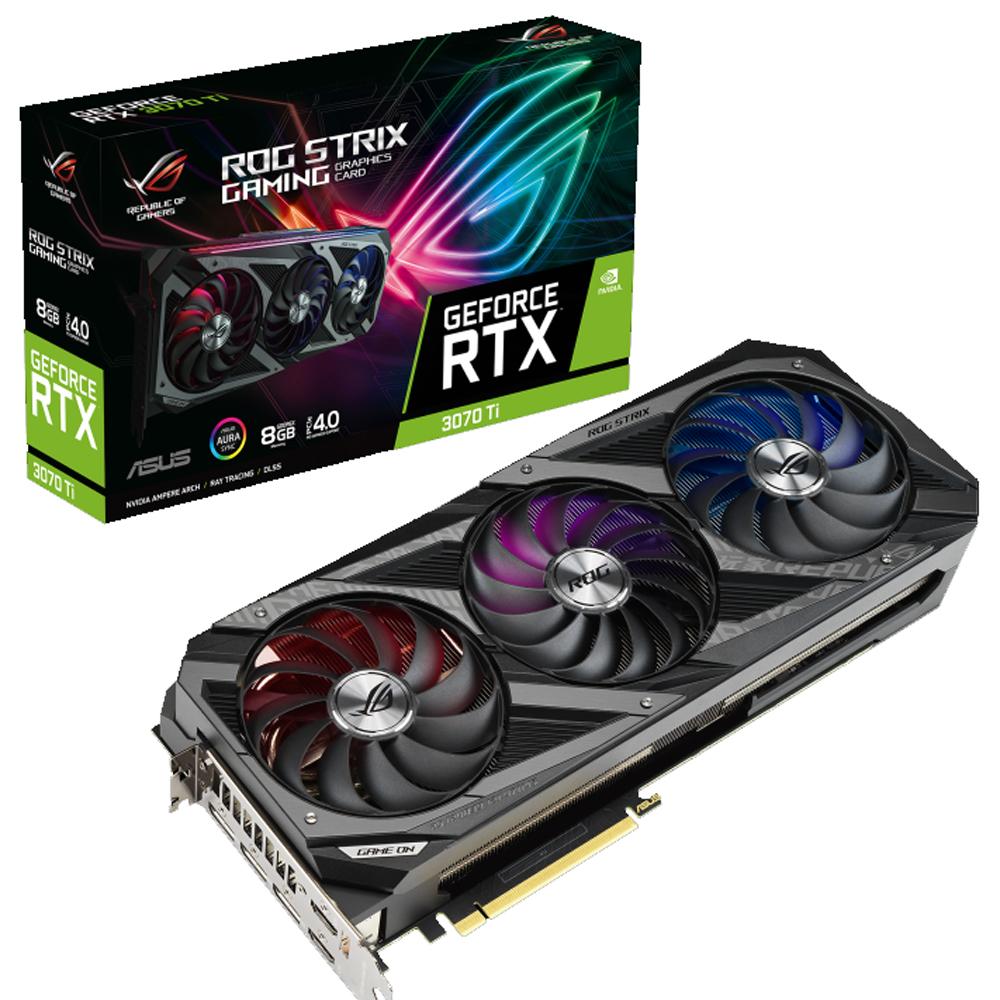

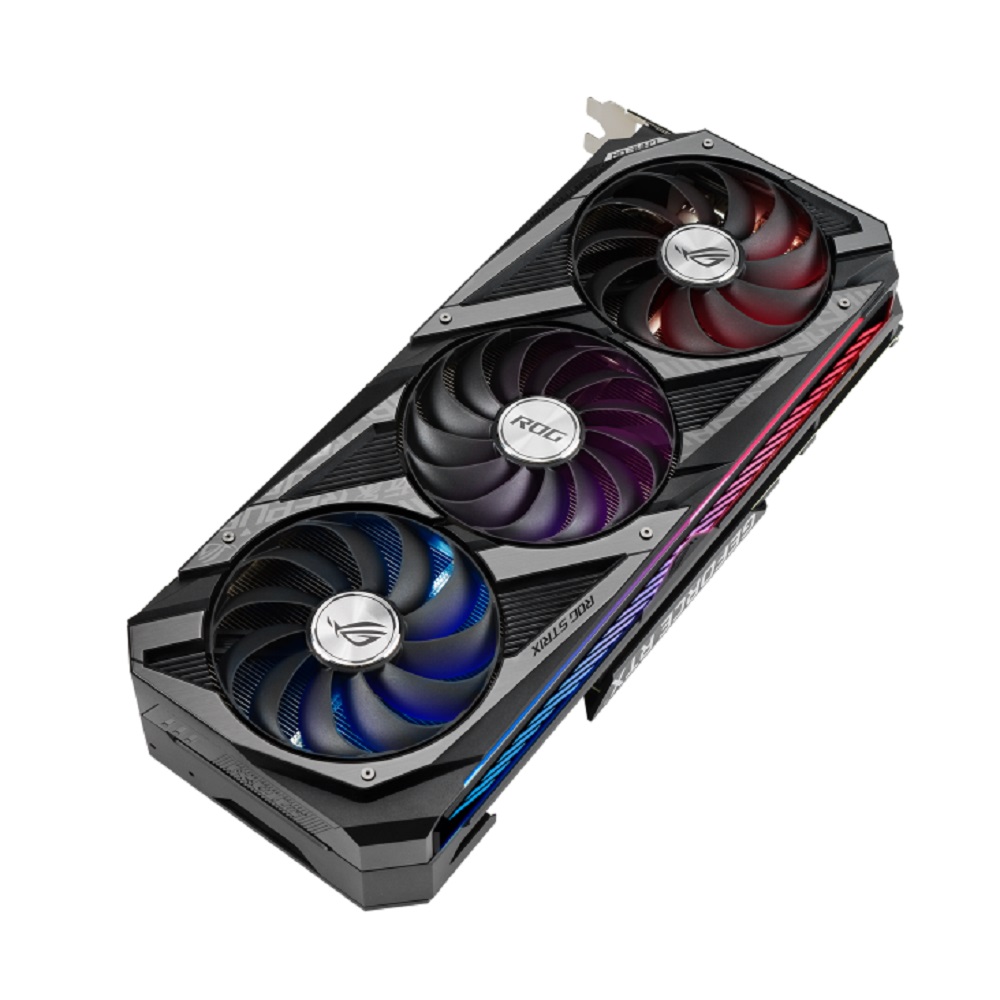

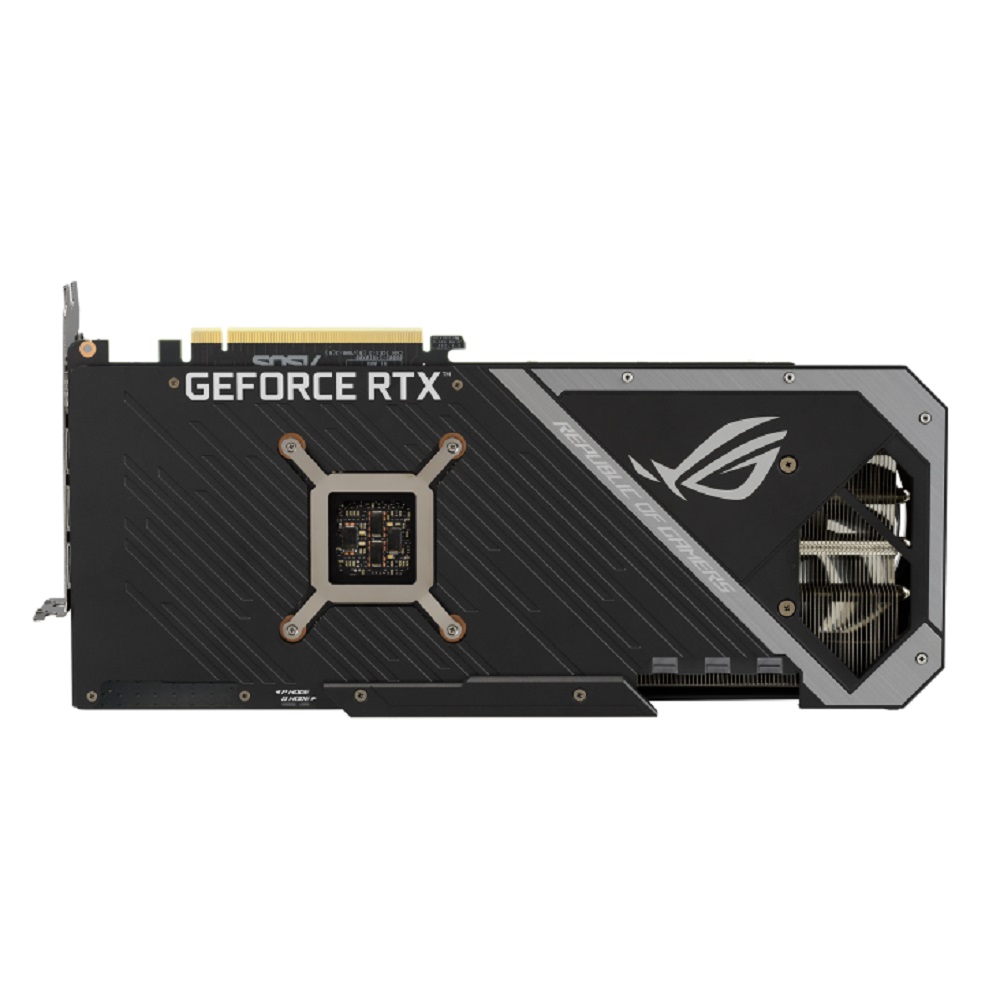

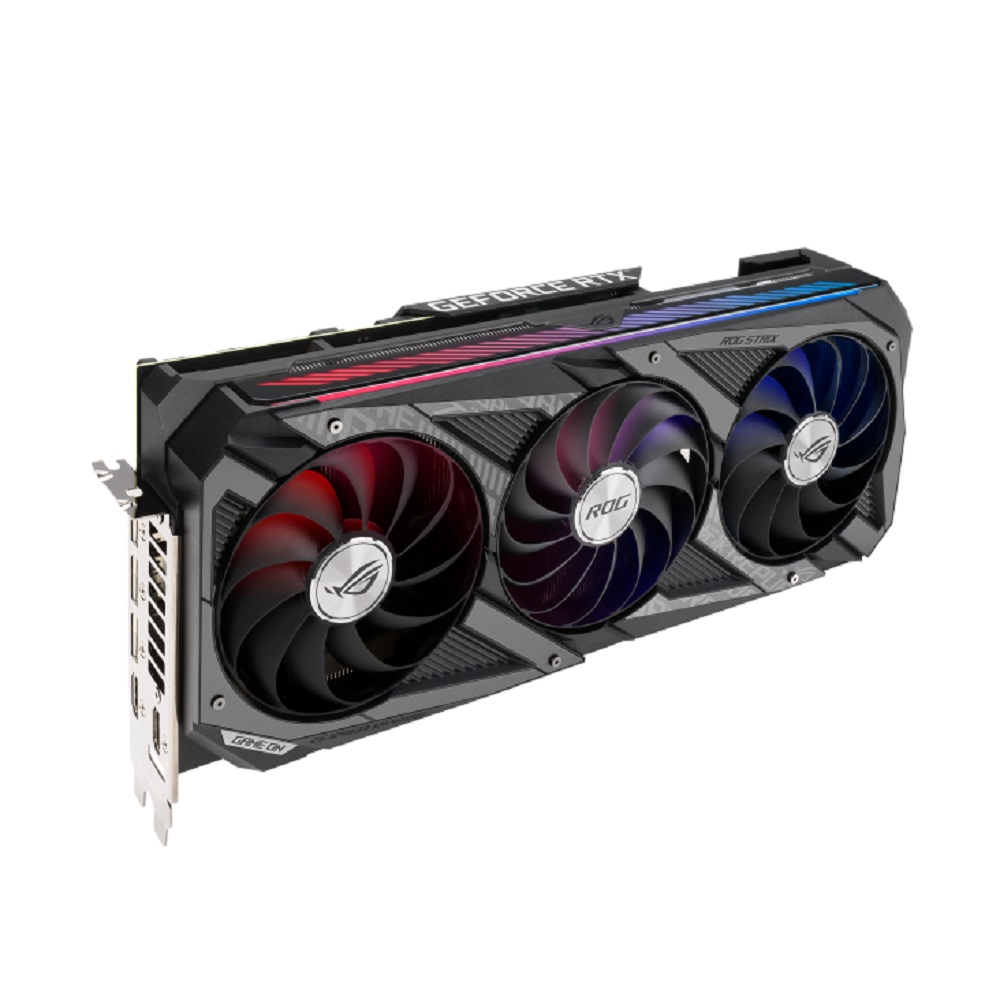

| Brand | ASUS |
|---|---|
| Series | ROG Strix |
| Model | ROG-STRIX-RTX3070TI-O8G-GAMING |
| Interface | PCI Express 4.0 |
|---|
| Chipset Manufacturer | NVIDIA |
|---|---|
| GPU Series | NVIDIA GeForce RTX 30 Series |
| GPU | GeForce RTX 3070 Ti |
| Boost Clock | OC mode: 1875 MHz Gaming mode: 1845 MHz |
| CUDA Cores | 6144 |
| Effective Memory Clock | 19 Gbps |
|---|---|
| Memory Size | 8GB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR6X |
| DirectX | DirectX 12 Ultimate |
|---|---|
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
|---|---|

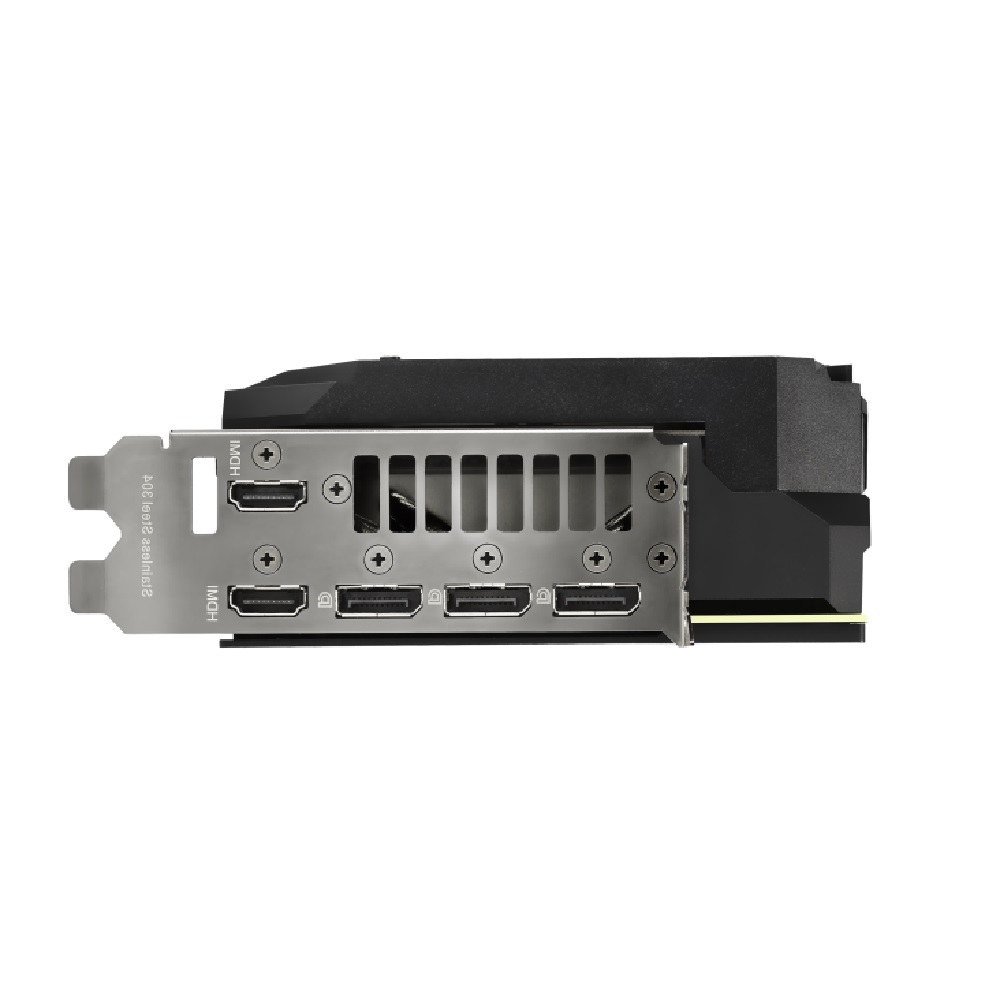

| HDMI | 2 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 1.4a |
| Max Resolution | 7680 x 4320 |
|---|---|
| SLI Support | No |
| Virtual Reality Ready | Yes |
| Cooler | Triple Fans |
| Recommended PSU Wattage | 750W |
| Power Connector | 3 x 8-Pin |
| HDCP Ready | 2.3 |
| Features | NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency. 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance. 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities. OC edition: Boost clock 1875 MHz (OC mode) / 1845 MHz (Gaming mode). Axial-tech Fan Design has been tuned up with more fan blades and a reversed rotational direction for the center fan. 2.9-slot design expands cooling surface area compared to last gen for more thermal headroom than ever before. Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages. GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring. |
|---|
| Max GPU Length | 319 mm |
|---|---|
| Card Dimensions (L x H) | 12.53" x 5.51" |
| Slot Width | 2.9 Slot |
| Package Contents | Accessories: 1 x ROG Velcro Hook & Loop 1 x ROG ruler 1 x Collection card 1 x Speedsetup Manual |
|---|
