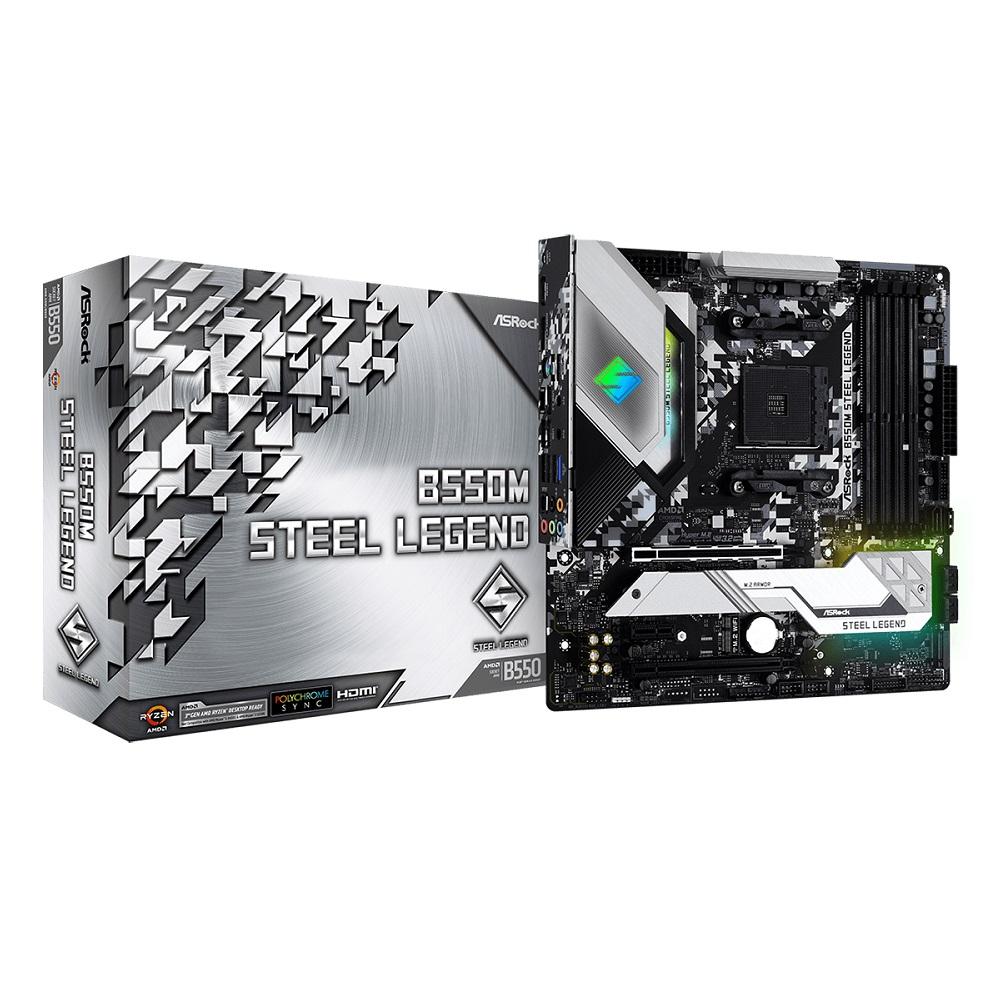

ASROCK PLACA B550M STEEL LEGEND
Inicio / COMPONENTES / MOTHERBOARD / AMD

ASROCK PLACA B550M STEEL LEGEND

Cod. BFX5M4
USD 209,00
iva inc.
Ver descripción del producto
Marca:
ASROCK
¡De momento no contamos con este artículo! Comunicate con nosotros y te informaremos su próximo ingreso.
Imágenes meramente ilustrativas
Consultar por este producto
Leer Nuestra Política de Entregas y Devoluciones
Descripción del producto

Model
BrandASRock
ModelB550M STEEL LEGEND
Supported CPU
CPU Socket Type AM4
CPU TypeSupports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series Processors*

* Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G.
* Not compatible with AMD Athlon Processors.

* BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASRock website for CPU support list.
Chipsets
Chipset AMD B550
Memory
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series APUs (Cezanne & Renoir))*

DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Vermeer & Matisse))*

DDR4 3333+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series APUs (Picasso))*

* For Ryzen Series APUs (Picasso, Cezanne and Renoir), ECC is only supported with PRO CPUs.
Maximum Memory Supported128GB
Channel Supported Dual Channel
ECC SupportedECC supported varies by processors
Buffer SupportedUn-buffered
Expansion Slots
PCI Express 4.0 x161 x PCI Express 4.0 x16*

* Supports NVMe SSD as boot disks.
* Actual support may vary by CPU.
PCI Express 3.0 x16 1 x PCI Express 3.0 x16*

* Supports NVMe SSD as boot disks
PCI Express x11 x PCI Express 3.0 x1
Other Slots15µ Gold Contact in VGA PCIe Slot (PCIE1)
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Storage Devices
SATA 6Gb/s 6 x SATA3 6.0Gb/s*

* M2_2 and SATA3_5_6 share lanes. If either one of them is in use, the other one will be disabled.
M.21 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)*

1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)*

* Supports NVMe SSD as boot disks.
* Supports ASRock U.2 Kit.
SATA RAID0/1/10
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Onboard Audio
Audio Chipset Realtek ALC1200
Audio Channels 7.1 Channels
Onboard LAN
LAN ChipsetDragon RTL8125BG
Max LAN Speed10/100/1000/2500Mbps
Rear Panel Ports
Back I/O Ports2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x Clear CMOS Button
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Windows 11 Compatibility
Windows 11Supported
